K82 is a flange seal profile specially designed for static sealing of SAE flanges.
PRODUCT ADVANTAGES
• Able to work in high pressures
• Interchangeable for o-ring
• Functions even with poor surfaces
• Easy and secure installation
• High wear resistance
• High reliability
APPLICATION
Used in SAE type of flanges and valve blocks.
| MATERIAL | CODE | |
| PU | 95 SHORE A | PU9401 |
OPERATING CONDITIONS |
|||
| MEDIA | Mineral oils DIN 51524) |
HFA ve HFB | HFC |
| TEMPERATURE | -30°C +100°C | +5°C +50°C | -30°C +40°C |
| PRESSURE | ≤600 Bar | ≤600 Bar | ≤600 Bar |

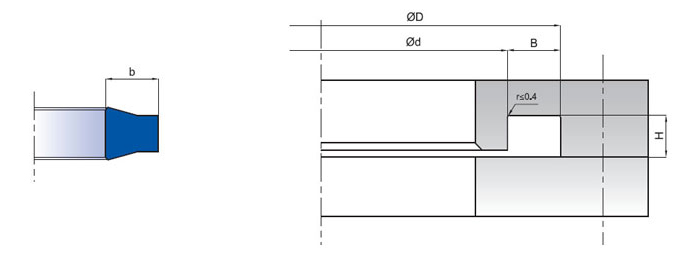

| KASTAŞ NO | d | D(-0/+0.2) | H(±0.05) | B(±0.5) | b |
|---|---|---|---|---|---|
| K82-017 | 17 | 25.4 | 2.85 | 4.2 | 3.5 |
| K82-023.40 | 23.4 | 31.8 | 2.85 | 4.2 | 3.5 |
| K82-031.30 | 31.3 | 39.7 | 2.85 | 4.2 | 3.5 |
| K82-036.10 | 36.1 | 44.5 | 2.85 | 4.2 | 3.5 |
| K82-045.40 | 45.4 | 53.8 | 2.85 | 4.2 | 3.5 |
| K82-055 | 55 | 63.4 | 2.85 | 4.2 | 3.5 |
