K58 is five piece double acting sealing set consists of aluminumbody , two elastomeric sealing elements , one guide ring , onemagnet and an O-ring for the inner sealing.
PRODUCT ADVANTAGES
• Ready to fit complete piston
• Low friction and smooth running due to sealing lip
geometry
• Easily fastened to the piston rod without using
additionalsealing elements
• Static seal on the inside diameter
• Easy installation
• Long service life
APPLICATION
All pneumatic cylinders in need of stroke control.
| MATERIAL | CODE | |
| PU | 92 SHORE A | PU9201 |
| POM | PM9901 | |
| ALUMINUM | 70 SHORE A | AL9901 |
| MAGNET | MK9901 | |
| NBR | 70 SHORE A | NB7001 |
OPERATING CONDITION |
||
| MEDIA | Prepared , dried and de-oiled compressed air | |
| TEMPERATURE | -30°C +80°C | |
| PRESSURE | ≤16 Bar | |
| SPEED | ≤1.0 m/sn |
|
SURFRACE ROUGHNESS |
Rmax |
| Sliding Surface Ød | ≤4 μm |
INSTALLATION
K58 is pushed onto the piston rod on the clamping flange towards the rod and fixed by fastening. The nut has to be secured. The sliding surface and the cylinder bore should be oiled with oil that must not go into the reaction with the sealing element during the installation process.
NOTES
For special applications that require high temperatures , K58 can be produced in FKM material.

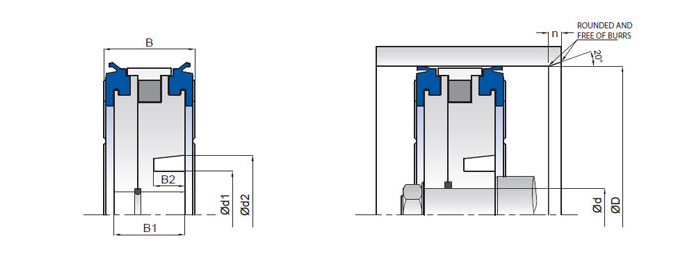

| KASTAŞ NO | D (H11) | d (f8) | d1 (-0/+0, | d2(-0/+0,2 | B | B1 | B2 |
|---|---|---|---|---|---|---|---|
| K 58-032 PU | 32,00 | 8,05 | 17,00 | 20,70 | 14,50 | 10,65 | 5,20 |
| K 58-040 PU | 40,00 | 8,05 | 21,40 | 26,50 | 15,40 | 11,70 | 5,80 |
| K 58-050 PU | 50,00 | 10,05 | 27,30 | 33,10 | 16,00 | 12,15 | 5,10 |
| K 58-060 PU | 60 | 10,05 | 25 | 31,8 | 19,05 | 15,85 | 5 |
| K 58-063 PU | 63,00 | 10,05 | 28,00 | 33,80 | 19,30 | 15,85 | 5,00 |
| K 58-080 PU | 80,00 | 12,05 | 29,00 | 34,40 | 22,00 | 17,50 | 8,50 |
| K 58-100 PU | 100,00 | 17,05 | 39,60 | 46,80 | 25,50 | 20,00 | 8,85 |
