K63 is a double acting pneumatic piston seal designed to work in low axial housing heights.
PRODUCT ADVANTAGES
• Easy installation
• Low friction
• Superior sealing effect
APPLICATION
Short stroke pneumatic cylinders and valves.
| MATERIAL | CODE | |
| NBR | 70 SHORE A | NB7001 |
| OPERATING CONDITION | |
| MEDIA | Prepared , dried and de-oiled compressed air |
| TEMPERATURE | -30°C +105°C |
| PRESSURE | ≤12 Bar |
| SPEED | ≤1.0 m/sn |
|
SURFRACE ROUGHNESS |
Rmax |
| Sliding Surface Ød | ≤4 μm |
| Groove Base ØD | ≤10 μm |
| Groove Flanks B | ≤15 μm |
K63 can be snapped by hand into the housing grooves provided. In case of using an assembly tool make sure that it is of soft material and have no sharp edges. Before installation the sealing element must be oiled with system oil. Special lubrication should be used on the sliding surface in case of having dried media.

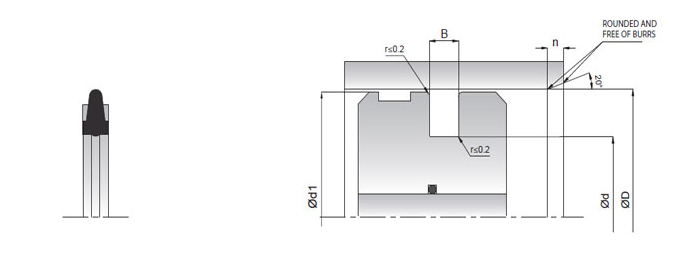

| KASTAŞ NO | D (H11) | d (h9) | B (-0/+0,2 | d1 (±0,1) |
|---|---|---|---|---|
| K63-012 | 12 | 7,4 | 1,8 | 11,7 |
| K63-016 | 16 | 11,4 | 1,8 | 15,7 |
| K63-020 | 20 | 14 | 2,4 | 19,5 |
| K63-025 | 25 | 17 | 3,2 | 24,5 |
| K63-032 | 32 | 24 | 3,2 | 31,50 |
| K63-040 | 40 | 32 | 3,2 | 39,50 |
| K63-050 | 50 | 40 | 4 | 49,50 |
| K63-063 | 63 | 53 | 4 | 62,40 |
| K63-080 | 80 | 65 | 6 | 79,40 |
| K63-100 | 100 | 85 | 6 | 99,40 |
| K63-125 | 125 | 110 | 6 | 124,30 |
