K52 is a single acting pneumatic wiper ensuring that foreignparticles are not introduced into the hydraulic cylinders. The lip isdesigned in a particular way that it functions as a rod seal andwiper.
PRODUCT ADVANTAGES
• Superior sealing effect
• Superior wiping effect
• Low static and dynamic friction
• Minimal space requirement
• High wear resistance
APPLICATION
Compact and special small cylinders.
| MATERIAL | CODE | |
| PU | 92 SHORE A | PU9201 |
OPERATING CONDITION |
||
| NBR | ||
| MEDIA | Prepared , dried and de-oiled compressed air | |
| TEMPERATURE | -30°C +105°C | |
| PRESSURE | ≤12 Bar | |
| SPEED | ≤1.0 m/sn | |
PU |
||
| MEDIA | Prepared , dried and de-oiled compressed air | |
| TEMPERATURE | -30°C +80°C | |
| PRESSURE | ≤16 Bar | |
| SPEED | ≤1.0 m/sn |

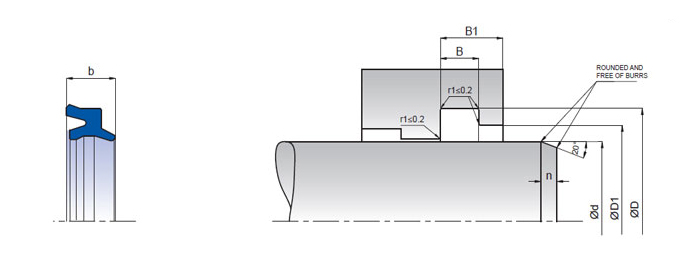

| KASTAŞ NO | NBR | PU | d (f9) | D (H11) | D1 (-0/+0, | B (-0/+0,2 | B1 | b |
|---|---|---|---|---|---|---|---|---|
| K52-004 | NBR | PU | 4 | 8,2 | 6,5 | 3 | 4,8 | 4 |
| K52-004/1 | NBR | 4 | 7 | 5,6 | 2,7 | 3,2 | 2,8 | |
| K52-005 | NBR | PU | 5 | 8 | 6,6 | 2,7 | 3,2 | 3 |
| K52-006 | NBR | PU | 6 | 11,2 | 9 | 4 | 5,2 | 5 |
| K52-008 | NBR | PU | 8 | 14,2 | 12 | 4 | 5,2 | 5 |
| K52-010 | NBR | PU | 10 | 16,2 | 14 | 4,5 | 6 | 5,5 |
| K52-010/1 | PU | 10 | 14 | 12.6 | 3.4 | 4.5 | 3.7 | |
| K52-012 | NBR | PU | 12 | 16,5 | 13,7 | 3,7 | 4,8 | 4 |
| K52-012/2 | PU | 12 | 18 | 14,8 | 4 | 6 | 4,8 | |
| K52-016 | NBR | PU | 16 | 20,5 | 17,7 | 3,7 | 4,8 | 4 |
| K52-016/1 | PU | 16 | 23 | 19 | 4,2 | 6,2 | 6 | |
| K52-018 | PU | 18 | 22.5 | 19.7 | 3.7 | 4.8 | 4 | |
| K52-020 | PU | 20 | 25 | 22,2 | 4,15 | 5,2 | 4,6 | |
| K52-020/1 | PU | 20 | 25 | 22,2 | 3,2 | 4,6 | 4,4 | |
| K52-025 | PU | 25 | 30 | 26,9 | 4,15 | 5,2 | 4,6 | |
| K52-030 | PU | 30 | 35,5 | 31,9 | 4,55 | 6 | 4,8 |
