K51 is a single acting pneumatic rod seal specially designed not to require additional element for axial fitting within the housing.
PRODUCT ADVANTAGES
• Superior sealing effect
• Minimal space requirement
• Easy installation to open grooves
• Wide range of dimensions
• Economical sealing solution
• Highly wear resistant
APPLICATION
Pneumatic cylinders.
| MATERIAL | CODE | |
| PU | 92 SHORE A | PU9201 |
| OPERATING CONDITION | ||
| MEDIA | Prepared , dried and de-oiled compressed air | |
| TEMPERATURE | -30°C +80°C | |
| PRESSURE | ≤16 Bar | |
| SPEED | ≤1.0 m/sn |

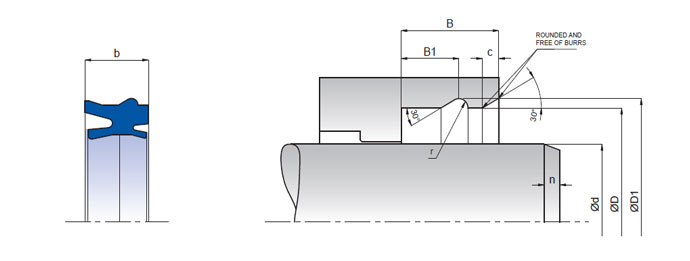

| KASTAŞ NO | d (f9) | D (H10) | b | B (-0/+0,5 | B1 (-0/+0, | D1 (±0,1) | r | c |
|---|---|---|---|---|---|---|---|---|
| K51-008 | 8 | 14 | 7 | 12 | 5.4 | 15.6 | 0.8 | 1.2 |
| K51-010 | 10 | 16 | 7 | 12 | 5.4 | 17.6 | 0.8 | 1.2 |
| K51-012 | 12 | 22 | 10,4 | 13 | 7,7 | 24,2 | 1,1 | 1,5 |
| K51-012/1 | 12 | 20 | 10,4 | 13 | 7,7 | 22,2 | 1,1 | 1,5 |
| K51-016 | 16 | 26 | 10,4 | 13 | 7,7 | 28,2 | 1,1 | 1,5 |
| K51-018 | 18 | 28 | 10,4 | 13 | 7,7 | 30,2 | 1,1 | 1,5 |
| K51-018/1 | 18 | 26 | 10,4 | 13 | 7,7 | 28,2 | 1,1 | 1,5 |
| K51-020 | 20 | 30 | 10,4 | 13 | 7,7 | 32,2 | 1,1 | 1,5 |
| K51-022 | 22 | 32 | 10.4 | 13 | 8 | 34.8 | 1.4 | 2 |
| K51-025 | 25 | 35 | 10,4 | 13 | 8 | 37,8 | 1,4 | 2 |
| K51-030 | 30 | 40 | 11,2 | 14 | 8 | 42,8 | 1,4 | 2 |
| K51-032 | 32 | 42 | 10,4 | 13 | 8 | 44,8 | 1,4 | 2 |
| K51-040 | 40 | 50 | 10,4 | 13 | 8 | 52,8 | 1,4 | 2 |
| K51-045 | 45 | 55 | 10,4 | 13 | 8,6 | 58,6 | 1,8 | 2 |
| K51-050 | 50 | 60 | 10,4 | 13 | 8,6 | 63,6 | 1,8 | 2 |
