Zgarniacz

K93 is a single acting wiper ensuring that foreign particles are not introduced into the hydraulic system.

PRODUCT ADVANTAGES
•Very good wiping performance
•No twisting in the house
•Easy installation
•Specially designed to prevent big particles to get into the system
•Used in heavy conditions by the good mechanical properties of Polyurethane material

APPLICATION
Construction machinery , forklift-trucks , presses , injection moulding machines , agricultural machinery and standard cylinders.

MATERIAL		CODE
PU	92 SHORE A	PU⁹²⁰¹

OPERATING CONDITION
MEDIA	Mineral oils(DIN 51524)	HFA and HFB	HFC
TEMPERATURE	-30°C +100°C	+5°C +50°C	-30°C +40°C
SPEED	≤1.0 m/sn	≤1.0 m/sn	≤1.0 m/sn

Note: The above data are maximum values and cannot be used at the same time.

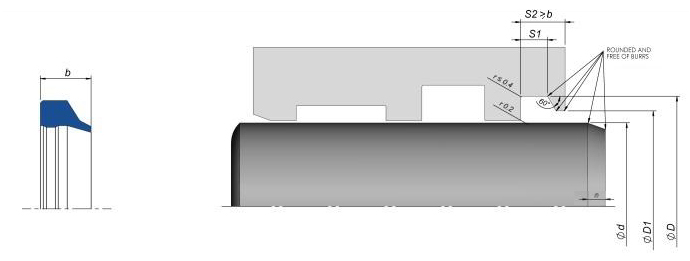

KASTAŞ NO	d(f8)	D(H10)	D1(H11)	S1(+0,2/-0,0)	b	S2
K93-101	101.6	114.94	106.4	6.35	11.3	≥b
K93-127	127	140.34	131.8	6.35	11.3	≥b
K93-19	19.05	25.4	21.79	4.47	8	≥b
K93-22	22.23	28.58	24.96	4.47	8	≥b
K93-22/1	22.23	31.75	24.95	4.77	8.5	≥b
K93-25	25.4	31.75	28.13	4.47	8	≥b
K93-25/1	25.4	34.93	28.14	4.77	8.5	≥b
K93-31	31.75	38.1	34.49	4.47	8	≥b
K93-31/1	31.75	41.28	34.49	4.77	8.5	≥b
K93-34	34.92	44.45	37.66	4.77	8.5	≥b
K93-38	38.1	44.45	40.84	4.47	8	≥b
K93-38/1	38.1	47.63	40.84	4.77	8.5	≥b
K93-44	44.45	53.98	47.19	4.77	8.5	≥b
K93-47	47.63	57.15	50.36	4.77	8.5	≥b
K93-50	50.8	57.15	53.54	4.47	8	≥b
K93-50/1	50.8	60.33	53.54	4.77	8.5	≥b
K93-63	63.5	76.84	68.33	6.35	11.3	≥b
K93-76	76.2	89.54	81.02	6.35	11.3	≥b
