K12 is a single acting scrapper ensuring that foreign particles are not introduced into the hydraulic cylinders , avoiding wear and damage to all the internal components including seals.
PRODUCT ADVANTAGES
• Superior scraping effect
• Simple , easy-construction groove
• No twisting in the housing
• Design in a way that the wiping lip contacts with the rod
surface to remove heavily deposited mud , ice , etc so that the
particles do not enter into the cylinder
• Outside diameter contacts the housing and has a sealing lip
to prevent moisture entering the groove.
APPLICATION
Especially used in heavy construction machinery that operate in the
open field , telescopic cylinders , cranes , mining equipment and
loading platforms.
| MATERIAL | CODE | ||
| PU | 90 SHORE A | PU9501 | |
| STEEL | ST37 | FE9901 |
OPERATING CONDITION |
|||
| MEDIA | Mineral oils(DIN 51524) | HFA and HFB | HFC |
| TEMPERATURE | -30°C +100°C | +5°C +50°C | -30°C +40°C |
| SPEED | ≤1.0 m/sn | ≤1.0 m/sn | ≤1.0 m/sn |

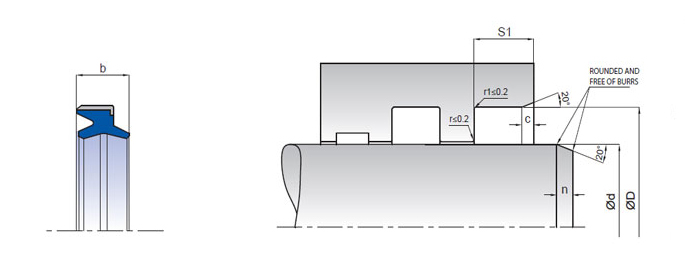

| KASTAŞ NO. | d (f8) | D (H8) | S1 (-0/+0,3) | b | c |
|---|---|---|---|---|---|
| K12-020 | 20 | 32 | 6 | 9 | 0,6 |
| K12-025 | 25 | 37 | 6 | 9 | 0,6 |
| K12-030 | 30 | 42 | 6 | 9 | 0,6 |
| K12-032 | 32 | 44 | 7 | 10 | 0,6 |
| K12-035 | 35 | 47 | 7 | 10 | 0,6 |
| K12-040 | 40 | 52 | 7 | 10 | 0,6 |
| K12-045 | 45 | 57 | 7 | 10 | 0,6 |
| K12-050 | 50 | 62 | 7 | 10 | 0,6 |
| K12-055 | 55 | 69 | 8 | 11 | 0,8 |
| K12-060 | 60 | 74 | 8 | 11 | 0,8 |
| K12-065 | 65 | 79 | 8 | 11 | 0,8 |
| K12-070 | 70 | 84 | 8 | 11 | 0,8 |
| K12-075 | 75 | 89 | 8 | 11 | 0,8 |
| K12-080 | 80 | 94 | 8 | 11 | 0,8 |
| K12-085 | 85 | 99 | 8 | 12 | 0,8 |
| K12-090 | 90 | 104 | 8 | 11 | 0,8 |
| K12-095 | 95 | 109 | 8 | 12 | 0,8 |
| K12-100 | 100 | 114 | 8 | 11 | 0,8 |
| K12-105 | 105 | 121 | 9 | 12,5 | 1 |
| K12-110 | 110 | 126 | 9 | 12 | 1 |
| K12-115 | 115 | 131 | 9 | 12 | 1 |
| K12-120 | 120 | 136 | 9 | 12 | 1 |
| K12-130 | 130 | 146 | 9 | 12 | 1 |
| K12-140 | 140 | 160 | 10 | 14 | 1,2 |
| K12-145 PU | 145 | 165 | 10 | 14 | 1,20 |
