K07 is a single acting wiper ensuring that foreign particles are not introduced into the hydraulic systems , avoiding wear and damage to all the internal components including seals.
PRODUCT
ADVANTAGES
• Superior wiping performance
• Axially open , easy-construction groove
• Secure seating , press fitting into the housing
• Space-saving construction
APPLICATION
Light and medium duty construction machinery , fork-lift trucks ,
agricultural machinery , support cylinders and standard
cylinders.
| MATERIAL | CODE | ||
| PU | 90 SHORE A | PU9201 | |
| STEEL | ST37 | FE9901 |
OPERATING CONDITION |
|||
| MEDIA | Mineral oils (DIN 51524) | HFA and HFB | HFC |
| TEMPERATURE | -30°C +100°C | +5°C +50°C | -30°C +40°C |
| SPEED | ≤1.0 m/sn | ≤1.0 m/sn | ≤1.0 m/sn |

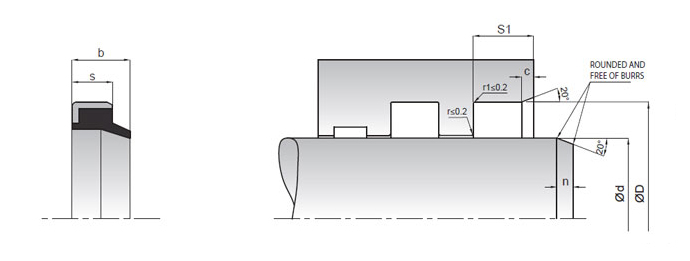

| KASTAŞ NO | d (f8) | D(H8) | S1 (-0/+0, | b | c |
|---|---|---|---|---|---|
| K07-020 PU | 20 | 30 | 7 | 10 | 1,4 |
| K07-022 PU | 22 | 32 | 5 | 8 | 1 |
| K07-025 PU | 25 | 35 | 7 | 10 | 1,4 |
| K07-028 PU | 28 | 38 | 7 | 10 | 1,4 |
| K07-030/1 PU | 30 | 40 | 7 | 10 | 1,4 |
| K07-032/2 PU | 32 | 42 | 7 | 10 | 1,4 |
| K07-035 PU | 35 | 45 | 7 | 10 | 1,4 |
| K07-040 PU | 40 | 50 | 7 | 10 | 1,4 |
| K07-045 PU | 45 | 55 | 7 | 10 | 1,4 |
| K07-050 PU | 50 | 60 | 7 | 10 | 1,4 |
| K07-055 PU | 55 | 65 | 7 | 10 | 1,4 |
| K07-060 PU | 60 | 70 | 7 | 10 | 1,4 |
| K07-065 PU | 65 | 75 | 7 | 10 | 1,4 |
| K07-070 PU | 70 | 80 | 7 | 10 | 1,4 |
| K07-075 PU | 75 | 85 | 7 | 10 | 1,4 |
| K07-080 PU | 80 | 90 | 7 | 10 | 1,4 |
| K07-080/1 PU | 80 | 94 | 8 | 11 | 1,6 |
| K07-085 PU | 85 | 99 | 8 | 11 | 1,6 |
| K07-085/1 PU | 85 | 95 | 7 | 10 | 1,4 |
| K07-090 PU | 90 | 100 | 7 | 10 | 1,4 |
| K07-090/1 PU | 90 | 104 | 8 | 11 | 1,6 |
| K07-095 PU | 95 | 105 | 7 | 10 | 1,4 |
| K07-100 PU | 100 | 110 | 7 | 10 | 1,4 |
| K07-130/1 PU | 130 | 146 | 9 | 12 | 1,8 |
| K07-160 PU | 160 | 175 | 9 | 12 | 1,8 |
| K07-180 PU | 180 | 195 | 10 | 14 | 1,8 |
