Zgarniacz w metalowej obudowie

K07 is a single acting wiper ensuring that foreign particles are not introduced into the hydraulic systems , avoiding wear and damage to all the internal components including seals

PRODUCT ADVANTAGES
• Superior wiping performance
• Axially open , easy-construction groove
• Used in heavy conditions by the good mechanical properties of PU material.
• Secure seating , press fitting into the housing
• Space-saving construction

APPLICATION
Light and medium duty construction machinery , fork-lift trucks , agricultural machinery , support cylinders and standard cylinders.

MATERIAL		CODE
NBR	90 SHORE A	NB⁹⁰⁰¹
STEEL		ST³⁷	FE⁹⁹⁰¹

OPERATING CONDITION
MEDIA	Mineral oils(DIN 51524)	HFA and HFB	HFC
TEMPERATURE	-30°C +105°C	+5°C +60°C	-30°C +60°C
SPEED	≤1.0 m/sn	≤1.0 m/sn	≤1.0 m/sn

Note: The above data are maximum values and cannot be used at the same time.

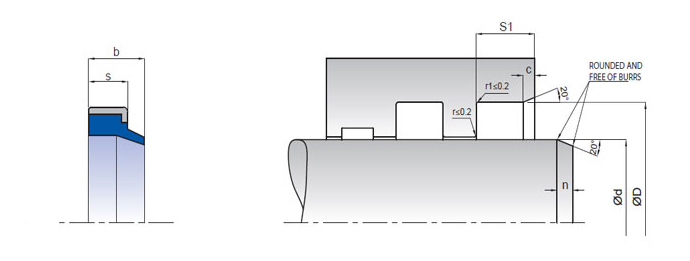

KASTAŞ NO	d (f8)	D (H8)	s/s1	b	c
K07-020	20	30	7	10	1,4
K07-022/1	22	30	5	8	1
K07-022/2	22	32	7	10	1,4
K07-025	25	35	7	10	1,4
K07-030	30	40	5	7	0,8
K07-030/1	30	40	7	10	1,4
K07-032	32	40	7	10	1,4
K07-032/1	32	45	7	10	1,4
K07-035	35	45	7	10	1,4
K07-036	36	46	7	10	1,4
K07-036/1	36	45	7	10	1,4
K07-040	40	50	7	10	1,4
K07-040/1	40	50	5	8	1
K07-045	45	55	7	10	1,4
K07-050	50	60	7	10	1,4
K07-050/1	50	56	5	7	0,8
K07-055	55	65	7	10	1,4
K07-056	56	66	7	10	1,4
K07-060	60	70	7	10	1,4
K07-063	63	75	7	10	1,4
K07-065	65	75	7	10	1,4
K07-070	70	80	7	10	1,4
K07-070/1	70	80	5	7	0,8
K07-075	75	85	7	10	1,4
K07-080	80	90	7	10	1,4
K07-090	90	100	7	10	1,4
K07-100	100	110	7	10	1,4
K07-105	105	115	7	10	1,4
K07-130	130	145	9	12	1,8
K07-180	180	195	10	14	1,8
