Uszczelnienie tłokowe

K49 is a two piece double acting sealing set which consists of a special design polyurethane seal ring and a NBR elastomer ring as energizer.

PRODUCT ADVANTAGES
•Superior static and dynamic sealing
•Ability to move without vibration even at low running speeds
•No twisting in the house due to rectangular profile
•Standardized housing according to ISO 7425-1
•Easy installation
•Low axial housing heights

APPLICATION
•Construction machinery
•Agricultural machinery
•Injection molding machines
•General industrial applications

MATERIAL		CODE
PU	60 SHORE D	PU⁶⁰⁰¹
NBR	80 SHORE A	NB⁸⁰⁰¹

OPERATING CONDITION
MEDIA	Mineral oils , water and water-oil mixture	HFA and HFB	HFC
TEMPERATURE	-30°C +100°C	+5°C +50°C	-30°C +40°C
PRESSURE	≤400 Bar	≤400 Bar	≤400 Bar
SPEED	≤0.5 m/sn	≤0.5 m/sn	≤0.5 m/sn

Note: The above data are maximum values and cannot be used at the same time.

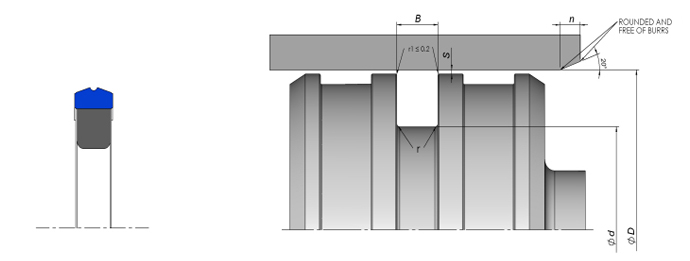

KASTAŞ NO	D(H9)	d(h9)	H(+0.2/-0.0)	n	r
K49 028-020,5	28	20,5	3,2	2	0,2
K49 055-039,5	55	39,5	6,3	3	0,3
K49 100-79	100	79	8.1	5	0.4
K49 100-84,5	100	84.5	6.3	3	0.4
K49 110-89	110	89	8.1	5	0.4
K49 110-94,5	110	94.5	6.3	3	0.4
K49 115-94	115	94	8.1	5	0.4
K49 120-99	120	99	8.1	5	0.4
K49 125-104	125	104	8.1	5	0.4
K49 125-104/1	125	104	10,5	7	0,4
K49 130-109	130	109	8.1	5	0.4
K49 140-119	140	119	8.1	5	0.4
K49 150-129	150	129	8.1	5	0.4
K49 160-139	160	139	8.1	5	0.4
K49 180-159	180	159	8.1	5	0.4
K49 200-179	200	179	8.1	5	0.4
K49 25-17,5	25	17.5	3.2	2	0.2
K49 32-24,5	32	24.5	3.2	2	0.2
K49 35-24	35	24	4.2	2.5	0.4
K49 40-29	40	29	4.2	2.5	0.4
K49 45-34	45	34	4.2	2.5	0.4
K49 50-39	50	39	4.2	2.5	0.4
K49 55-44	55	44	4.2	2.5	0.4
K49 60-44,5	60	44.5	6.3	3	0.4
K49 60-49	60	49	4.2	2.5	0.4
K49 63-47,5	63	47.5	6.3	3	0.4
K49 63-52	63	52	4.2	2.5	0.4
K49 65-49,5	65	49.5	6.3	3	0.4
K49 65-54	65	54	4.2	2.5	0.4
K49 70-54,5	70	54.5	6.3	3	0.4
K49 70-59	70	59	4.2	2.5	0.4
K49 75-59,5	75	59.5	6.3	3	0.4
K49 80-64,5	80	64.5	6.3	3	0.4
K49 85-69,5	85	69.5	6.3	3	0.4
K49 90-74,5	90	74.5	6.3	3	0.4
K49 95-79,5	95	79.5	6.3	3	0.4
