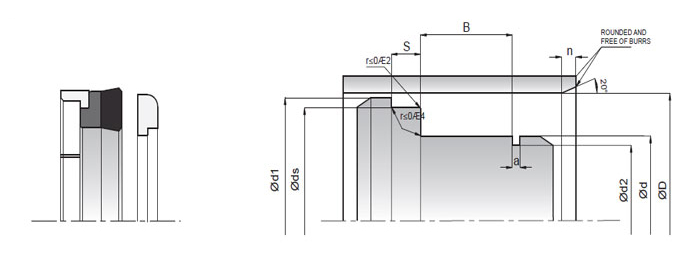

K43 is a three piece single acting sealing set which consists of onereinforced cotton fabric and nitrile rubber vulcanized together , one L shaped thermoplastic guide back-up ring and a retainingring.
PRODUCT ADVANTAGES
• Functions even with poor surfaces
• Limited space due to the open housing in one-piece
piston
• Reinforced cotton fabric base prevents the seal from
extrusion
• Good sealing at low pressures
APPLICATION
Mining equipment , after market , mobile hydraulics , presses
andstandard cylinders.
| MATERIAL | CODE | |
| NBR | 80 SHORE A | NB8001 |
| COTTON FABRIC NBR | NB8001 | |
| POM | PM9901 |
OPERATING CONDITION |
||||
| MEDIA | Mineral oils(DIN 51524) | HFA and HFB | HFC | |
| TEMPERATURE | -30°C +105°C | +5°C +60°C | -30°C -60°C | |
| PRESSURE | ≤500Bar | ≤500Bar | ≤500Bar | |
| SPEED | ≤0.5 m/sn | ≤0.5 m/sn | ≤0.5 m/sn |
| KASTAŞ NO | D (H11) | d (h9) | B (-0/+0,2 | S(-0/+0,2) | A(-0/+0,1) | ds(h8) | d2 (+0/-0,2) | d1(± 0,1) | n |
|---|---|---|---|---|---|---|---|---|---|
| K43-032 | 32,00 | 20,00 | 10,00 | 6,35 | 3,10 | 28,50 | 15,80 | 29,80 | 5 |
| K43-035 | 35,00 | 22,00 | 10,00 | 6,35 | 3,10 | 31,40 | 17,80 | 32,80 | 5 |
| K43-038 | 38,00 | 25,00 | 10,00 | 6,35 | 3,10 | 34,45 | 20,80 | 35,80 | 5 |
| K43-040 | 40,00 | 26,00 | 9,40 | 6,35 | 3,10 | 35,40 | 21,60 | 37,80 | 5 |
| K43-045 | 45,00 | 30,00 | 9,50 | 6,35 | 3,10 | 40,40 | 25,80 | 42,80 | 5 |
| K43-045/1 | 45,00 | 35,00 | 8,50 | 6,35 | 3,10 | 42,00 | 30,80 | 42,80 | 5 |
| K43-050 | 50,00 | 30,00 | 14,50 | 6,35 | 3,35 | 44,30 | 25,80 | 47,50 | 5 |
| K43-055 | 55,00 | 40,00 | 11,00 | 6,35 | 3,10 | 50,40 | 35,80 | 52,80 | 5 |
| K43-060 | 60,00 | 40,00 | 14,50 | 6,35 | 3,35 | 54,16 | 36,10 | 57,50 | 5 |
| K43-063 | 63,00 | 45,00 | 11,00 | 6,35 | 3,10 | 58,40 | 40,84 | 60,50 | 5 |
| K43-063/1 | 63,50 | 47,62 | 9,52 | 6,35 | 3,10 | 58,90 | 41,34 | 61,30 | 5 |
| K43-065 | 65,00 | 45,00 | 14,00 | 6,35 | 3,35 | 59,30 | 40,60 | 62,50 | 5 |
| K43-065/1 | 65,00 | 50,00 | 10,50 | 6,35 | 3,10 | 60,40 | 45,60 | 62,80 | 5 |
| K43-070 | 70,00 | 50,00 | 14,50 | 6,35 | 3,35 | 64,20 | 45,84 | 67,50 | 5 |
| K43-075 | 75,00 | 55,00 | 14,50 | 6,35 | 3,35 | 69,20 | 50,60 | 72,50 | 5 |
| K43-080 | 80,00 | 60,00 | 14,50 | 6,35 | 3,35 | 74,30 | 55,80 | 77,50 | 5 |
| K43-085 | 85,00 | 70,00 | 12,00 | 6,35 | 3,10 | 80,30 | 65,50 | 82,80 | 5 |
| K43-090 | 90,00 | 70,00 | 14,50 | 6,35 | 3,35 | 84,15 | 66,10 | 87,50 | 5 |
| K43-095 | 95,00 | 75,00 | 14,50 | 6,35 | 3,20 | 89,15 | 71,00 | 92,50 | 5 |
| K43-100 | 100,00 | 80,00 | 14,50 | 6,35 | 3,35 | 94,15 | 75,84 | 97,50 | 7 |
| K43-104 | 104,50 | 85,00 | 13,00 | 6,35 | 3,35 | 98,90 | 81,10 | 102,00 | 7 |
| K43-105 | 105,00 | 85,00 | 14,00 | 6,35 | 3,35 | 99,42 | 80,60 | 102,50 | 7 |
| K43-110 | 110,00 | 90,00 | 13,00 | 6,35 | 3,10 | 104,15 | 85,90 | 107,50 | 7 |
| K43-115 | 115,00 | 95,00 | 14,50 | 6,35 | 3,35 | 109,90 | 90,50 | 112,50 | 7 |
| K43-120 | 120,00 | 100,00 | 12,50 | 6,35 | 3,35 | 114,10 | 95,60 | 117,50 | 7 |
| K43-125 | 125,00 | 105,00 | 12,50 | 6,35 | 3,35 | 119,15 | 101,00 | 122,50 | 7 |
| K43-130 | 130,00 | 110,00 | 12,00 | 6,35 | 3,35 | 123,24 | 105,60 | 127,50 | 7 |
| K43-150 | 150,00 | 125,00 | 14,00 | 6,35 | 3,35 | 143,00 | 120,60 | 147,30 | 7 |
| K43-160 | 160,00 | 140,00 | 14,00 | 6,35 | 3,20 | 154,30 | 136,00 | 157,50 | 7 |
| K43-200 | 200,00 | 180,00 | 14,00 | 6,35 | 3,10 | 194,00 | 175,60 | 197,50 | 7 |
