Uszczelnienie tłokowe

K501 is a two piece double acting piston seal consisting of a thermoplastic sealing element and one energizer elastomer ring.

ADVANTAGES
• Excellent sealing performance under static and dynamic applications
• Simple groove design
• Easy fit without installation tool
• Superior sealing performance at high and variable pressure levels
• Longer service life due to high abrasion resistance
• Excellent sealing at high surface roughness
• Outstanding resistance to pressure shocks

APPLICATION
Heavy duty cylinders and construction machinery.

MATERIAL		CODE
NBR	70 SHORE A	NB⁷⁰⁰¹
PA		PA⁹⁹⁰⁴

OPERATING CONDITION
MEDIA	Mineral oils(DIN 51524)	HFA and HFB	HFC
TEMPERATURE	-30°C and +105°C	+5°C +60°C	-30°C +60°C
PRESSURE	≤500 Bar	≤500 Bar	≤500 Bar
SPEED	≤1m/sec	≤1m/sec	≤1m/sec

Note: The above data are maximum values and cannot be used at the same time.

SURFRACE ROUGHNESS	Ra	Rmax
Sliding Surface Ød	≤0.4 μm	≤4 μm
Groove Base ØD	≤1.6 μm	≤6.3 μm
Groove Flanks S1	≤3.2 μm	≤16 μm

Note: It is recommended to have 50% to 90% of the working surface material contact area value.
INSTALLATION
Easy installation into one-piece piston head. Sealing elements must be pre-lubed with system oil before installation.
NOTES It is recommended to use with minimum two piston guide rings in long-stroke cylinders , minimum one guide ring in short stroke and under low radial loads.

PERMISSIBLE SEALING GAP
B (mm)	Smax ( mm )
4.2	0.35
6.3	0.50
8	0.6

Note:All the above mentioned “S” values are maximum and it’s vital to use lower values for system security.

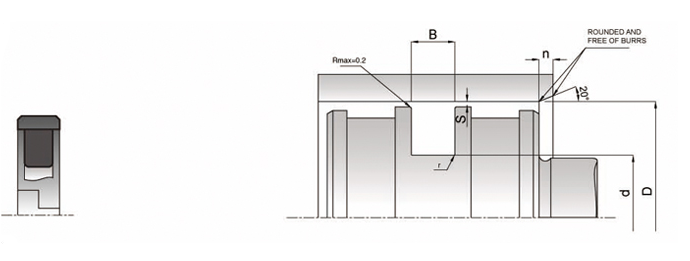

KAŞTAŞ NO	D(H9)	d(h9)	B(-0/+0.2)	r	n
K501-050	50	39	4.2	1	6
K501-060	60	44.5	6.3	1.3	8
K501-063	63	47,5	6,3	1,3	8
K501-075	75	54	8,1	1,8	10,5
K501-080	80	64,5	6,3	1,3	6
K501-085	85	69,5	6,3	1,3	6
K501-090	90	74,5	6,3	1,3	6
K501-090/1	90	69	8.1	1.8	10.5
K501-095	95	74	8,1	1,8	10,5
K501-100	100	84,5	6,3	1,3	6
K501-100/1	100	79	8.1	1.8	10.5
K501-105	105	84	8,1	1,8	10,5
K501-105/1	105	89,5	6,3	1,3	6
K501-110	110	94,5	6,3	1,3	6
K501-115	115	94	8,1	1,8	10,5
K501-120	120	99	8,1	1,8	10,5
K501-125	125	104	8,1	1,8	10,5
K501-125/1	125	110	6,3	1,3	10,5
K501-130	130	109	8,1	1,8	10,5
K501-135	135	114	8,1	1,8	10,5
K501-140	140	119	8,1	1,8	10,5
K501-145	145	124	8,1	1,8	10,5
K501-150	150	129	8,1	1,8	10,5
K501-160	160	139	8,1	1,8	10,5
K501-165	165	144	8,1	1,8	10,5
K501-170	170	149	8,1	1,8	10,5
K501-175	175	154	8,1	1,8	10,5
K501-180	180	159	8,1	1,8	10,5
K501-185	185	164	8,1	1,8	10,5
K501-190	190	169	8,1	1,8	10,5
K501-200	200	179	8,1	1,8	10,5
K501-210	210	189	8,1	1,8	10,5
K501-215	215	194	8,1	1,8	10,5
K501-220	220	199	8,1	1,8	10,5
K501-225	225	204	8,1	1,8	10,5
K501-230	230	209	8,1	1,8	10,5
K501-250	250	229	8,1	1,8	10,5
