Pakiet tłokowy

K03 is a three piece single acting sealing set which consists of one reinforced cotton fabric backup ring , one elastomeric nitrile rubber middle ring , and one thermoplastic header ring.

PRODUCT ADVANTAGES
• Functions even with poor surfaces
• Easy installation
• Adjustable seal housing height due to the reason of being used in open grooves.

APPLICATION
Used especially in hard working conditions such as iron and steel industry , mining equipment , marine hydraulics , scrap cutters and special cylinders where the actual conditions are difficult to predict.

MATERIAL	CODE
COTTON FABRIC NBR	NB⁸⁰⁰⁵
POM	PM⁹⁰⁰³

OPERATING CONDITION
MEDIA	Mineral oils(DIN 51524)	HFA and HFB	HFC
TEMPERATURE	-30°C +105°C	+5°C +60°C	-30°C +60°C
PRESSURE	≤400 Bar	≤400 Bar	≤400 Bar
SPEED	≤0.5 m/sn	≤0.5 m/sn	≤0.5 m/sn

Note: The above data are maximum values and cannot be used at the same time.

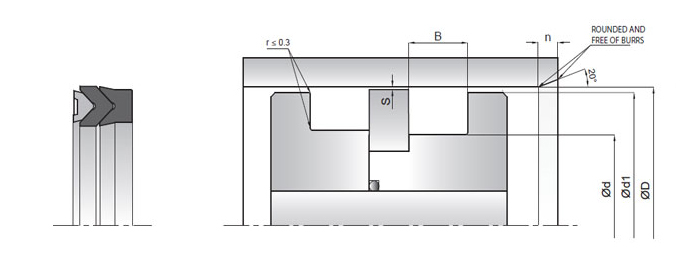

KASTAŞ NO	D (H9)	d (h11)	B(-0/+0,2)	d1(-0,3/+0	n
K03-020	20	10	9,3	19,5	6
K03-022	22	12	9,3	21,5	6
K03-025	25	15	9,3	24,5	6
K03-028	28	18	9,3	27,5	6
K03-030	30	20	9,3	29,5	6
K03-032	32	20	10,9	31	6
K03-035	35	23	10,9	34	6
K03-036	36	24	10,9	35	6
K03-040	40	25	11,5	39	6
K03-042	42	27	11,5	41	6
K03-045	45	30	11,5	44	6
K03-050	50	35	11,5	49	6
K03-055	55	40	11,5	54	6
K03-056	56	41	11,5	55	6
K03-060	60	45	11,5	59	6
K03-063	63	48	13	62	6
K03-070	70	50	15,2	69	7
K03-080	80	60	15,2	79	7
K03-090	90	70	21,2	89	7
K03-100	100	80	21,2	99	7
K03-110	110	90	21,2	109	7
K03-115	115	95	21,2	114	7
K03-125	125	100	25,8	124	8
K03-140	140	115	25,8	139	8
K03-150	150	120	29	148,5	8
K03-160	160	130	29	158,5	8
K03-180	180	150	31,5	178,5	8
K03-200	200	170	33,5	198,5	8
K03-250	250	220	33,5	248,5	8
K03-275	275	245	33,5	273,5	8
K03-280	280	250	32.5	278.5	8
K03-300	300	270	33,5	298,5	8
