Uszczelnienie kompaktowe

K504 is a three piece double acting compact seal which consists of one fabrik reinforced elastomeric sealing element and two thermoplastic guide back-up rings.

PRODUCT ADVANTAGES
• Low friction , free of stick-slip
• Improved abrasion resistance
• Good dynamic and static sealing
• Long service life
• Reliable solution in water and water based media

APPLICATION
Mining equipment , iron and steel industry , marine hydraulics and earth moving equipment.


MATERIAL		CODE
NBR		NB⁸⁰⁰¹
COTTON FABRIC NBR		FB⁸⁰⁰¹
POM		PM⁹⁹⁰¹

OPERATING CONDITIONS
MEDIA	Mineral oils (DIN 51524)	HFA and HFB	HFC
TEMPERATURE	-30°C +105°C	+5°C +60°C	-30°C +60°C
PRESSURE	≤500 Bar	≤500 Bar	≤500 Bar
SPEED	≤0.5 m/sec	≤0.5 m/sec	≤0.5 m/sec

Note: The above data are maximum values and can not be used at the same time.

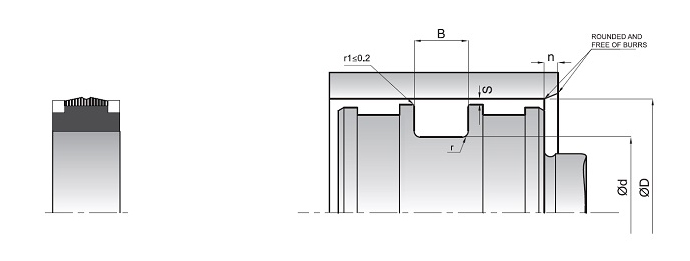

KASTAŞ NO	D(H8)	d(h9)	B(-0/+0,2)	r	n
K504 080-066	80	66	16,5	0.5	3.5
K504 100-086	100	86	16,5	0.5	5
K504 110-095	110	95	15,5	0.5	5
K504 120-105	120	105	15,5	0.5	5
K504 125-110	125	110	15,7	0.6	5
K504 130-113	130	113	20,5	0.6	5
K504 140-125	140	125	15,9	0.6	5
K504 150-135	150	135	15,5	0.6	5
K504 160-143	160	143	20	0.6	5
K504 170-150	170	150	15,5	0.6	5
K504 180-163	180	163	20	0.6	5
K504 185-165	185	165	15,5	0.6	5
K504 200-180	200	180	15,5	0.6	5
K504 210-190	210	190	15,5	0.6	7
K504 225-205	225	205	24,5	0.6	7
K504 240-220	240	220	25	0.6	7
K504 250-230	250	230	25,5	0.6	7
K504 320-300	320	300	25,5	0.6	7
