K20 is a three piece double acting compact seal which consists one elastomeric nitrile rubber sealing element and two special profiled thermoplastic guide rings.
PRODUCT
ADVANTAGES
• Simple groove design , one-piece piston possible
• Simple snap installation
• Economic sealing and guiding solution
• Can be used in small cross-sections
APPLICATION
Agricultural machinery and light duty cylinders.
| MATERIAL | CODE | ||
| NBR | 80 SHORE A | NB8001 | |
| POM |
PM9901 | ||
| OPERATING CONDITIONS | |||
|
MEDIA |
Mineral oils (DIN 51524) |
HFA and HFB |
HFC |
| TEMPERATURE | -30°C +105°C | +5°C +60°C | -30°C +60°C |
| PRESSURE | ≤150 Bar | ≤150 Bar | ≤150 Bar |
| SPEED | ≤0.5 m/sn | ≤0.5 m/sn | ≤0.5 m/sn |
Note: The above data are maximum values and cannot be used at the same time.
| SURFACE ROUGHNESS | Ra | Rmax |
Sliding Surface ØD |
≤0.4 μm |
≤4.0 μm |
| Groove Base Ød | ≤1.6 μm | ≤10 μm |
| Groove Flanks B | ≤3.2 μm | ≤16 μm |
Note: It is recommended to have 50% to 90% of the working surface material contact area value.
INSTALLATION
Easily assembled into one-piece piston because the guide rings are
been produced in split forms. It is very important that the
assembly tools must be of soft material and have no sharp edges.
Before installation the sealing elements must be oiled with system
oil.
NOTES
For special applications that require high temperatures , piston
seal is manufactured in FKM and special mixture PTFE material.

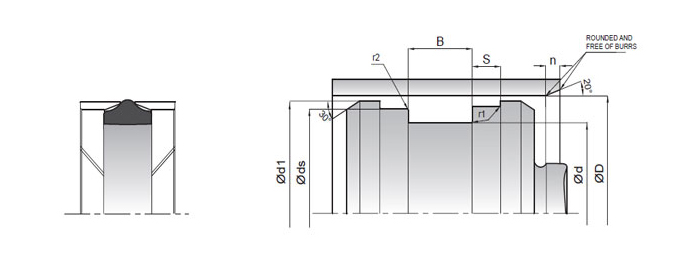

| KASTAŞ NO | D(H10) | d (h9) | d1(h11) | ds (h9) | B (-0/+0,2 | S(-0/+0,1) | n | R1 | R2 |
|---|---|---|---|---|---|---|---|---|---|
| K20 025,4-017,45 | 25,43 | 17,47 | 23,83 | 21,08 | 8,90 | 3,05 | 1,98 | 0,4 | 0,2 |
| K20 025-017.50 | 25 | 17,5 | 24 | 21,3 | 8,70 | 3,20 | 2 | 0,4 | 0,2 |
| K20 031,75-023,80 | 31,79 | 23,83 | 30,18 | 27,44 | 8,90 | 3,05 | 1,98 | 0,4 | 0,2 |
| K20 032-022 | 32 | 22 | 31 | 27,5 | 11,20 | 3,90 | 2,5 | 0,4 | 0,2 |
| K20 038,1-028,57 | 38,14 | 28,61 | 36,54 | 33,67 | 11,30 | 3,70 | 2,36 | 0,4 | 0,2 |
| K20 040-030 | 40 | 30 | 39 | 35,5 | 11,20 | 3,90 | 2,5 | 0,4 | 0,2 |
| K20 044,45-034,92 | 44,5 | 34,96 | 42,9 | 40,02 | 11,30 | 3,70 | 2,36 | 0,4 | 0,2 |
| K20 050,8-041,27 | 50,86 | 41,32 | 49,26 | 46,38 | 11,30 | 3,70 | 2,36 | 0,4 | 0,2 |
| K20 050-040 | 50 | 40 | 49 | 45,5 | 11,20 | 3,90 | 2,5 | 0,4 | 0,2 |
| K20 057,15-047,62 | 57,21 | 47,68 | 55,61 | 52,76 | 11,30 | 3,70 | 2,36 | 0,4 | 0,2 |
| K20 063,50-053,97 | 63,57 | 54,04 | 61,97 | 59,12 | 11,30 | 3,70 | 2,36 | 0,4 | 0,2 |
| K20 063-053 | 63 | 53 | 61,5 | 58,5 | 11,20 | 3,90 | 2,5 | 0,4 | 0,2 |
| K20 069,85-060,32 | 69,93 | 60,39 | 68,33 | 65,48 | 11,30 | 3,70 | 2,36 | 0,4 | 0,2 |
| K20 076,20-066,67 | 76,29 | 66,75 | 74,68 | 71,84 | 11,30 | 3,70 | 2,36 | 0,4 | 0,2 |
| K20 080-070 | 80 | 70 | 78,5 | 75,5 | 11,20 | 3,90 | 2,5 | 0,4 | 0,2 |
| K20 082,55-073,02 | 82,64 | 73,11 | 81,04 | 78,19 | 11,30 | 3,70 | 2,36 | 0,4 | 0,2 |
| K20 088,9-076,20 | 89 | 76,29 | 87,4 | 83,15 | 14,45 | 5,21 | 3,18 | 0,4 | 0,2 |
| K20 092-082 | 92 | 82 | 90,5 | 87,5 | 11,20 | 3,90 | 2,5 | 0,4 | 0,2 |
| K20 095,25-082,55 | 95,36 | 82,64 | 93,76 | 89,51 | 14,45 | 5,21 | 3,18 | 0,4 | 0,2 |
| K20 100-087 | 100 | 87 | 98,5 | 93,8 | 14,20 | 5,90 | 4 | 0,4 | 0,2 |
| K20 101,6-088,9 | 101,71 | 89 | 100,11 | 95,87 | 14,45 | 5,21 | 3,18 | 0,4 | 0,2 |
| K20 114,3-101,6 | 114,43 | 101,71 | 112,83 | 108,58 | 14,45 | 5,21 | 3,18 | 0,4 | 0,2 |
| K20 125-112 | 125 | 112 | 123,5 | 118,8 | 14,20 | 5,90 | 4 | 0,4 | 0,2 |
| K20 127-111,12 | 127,14 | 111,25 | 125,54 | 119,23 | 17,65 | 8,65 | 3,97 | 0,8 | 0,4 |
| K20 140-124 | 140 | 124 | 138,5 | 132 | 17,70 | 8,70 | 5 | 0,8 | 0,4 |
| K20 152,4-133,35 | 152,57 | 133,5 | 150,97 | 145,25 | 25,55 | 12,60 | 4,76 | 0,8 | 0,4 |
| K20 160-140 | 160 | 140 | 158,5 | 151,4 | 25,20 | 12,40 | 5 | 0,8 | 0,4 |
| K20 180-160 | 180 | 160 | 178,5 | 171,4 | 25,20 | 12,40 | 5 | 0,8 | 0,4 |
| K20 200-180 | 200 | 180 | 198,5 | 191,4 | 25,20 | 12,40 | 5 | 0,8 | 0,4 |
