K39 is a single acting rod seal which consists of reinforced cotton fabric and nitrile rubber vulcanized together forming an integral sealing element.
| MATERIAL | CODE | |
| NBR | 80 SHORE A | NB8001 |
| COTTON FABRIC NBR | FB8001 |
OPERATING CONDITIONS |
|||
| MEDIA | Mineral oils(DIN 51524) | HFA and HFB | HFC |
| TEMPERATURE | -30°C +105°C | +5°C +60°C | -30°C +60°C |
| PRESSURE | ≤250 Bar | ≤250 Bar | ≤250 Bar |
| SPEED | ≤0.5 m/sn | ≤0.5 m/sn | ≤0.5 m/sn |

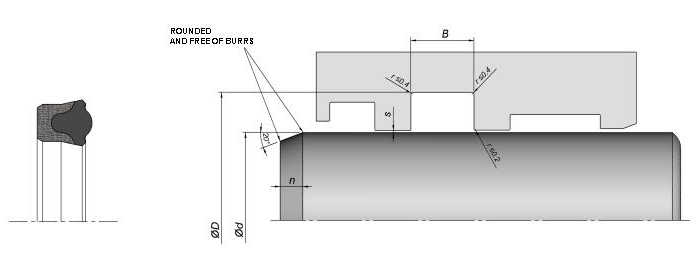

| KASTAŞ NO | d(f8) | D(H8) | B(-0/+0.2) | n |
|---|---|---|---|---|
| K39-020 | 20 | 28 | 6,3 | 2,5 |
| K39-022 | 22 | 30 | 6,3 | 2,5 |
| K39-025 | 25 | 33 | 6,3 | 2,5 |
| K39-028 | 28 | 36 | 6,3 | 2,5 |
| K39-030 | 30 | 38 | 6,3 | 2,5 |
| K39-030/1 | 30 | 42 | 9 | 3 |
| K39-035 | 35 | 43 | 6,3 | 2,5 |
| K39-040 | 40 | 48 | 6,3 | 2,5 |
| K39-045 | 45 | 55 | 8 | 3 |
| K39-050 | 50 | 60 | 8 | 3 |
| K39-055 | 55 | 65 | 8 | 3 |
| K39-060 | 60 | 70 | 8 | 3 |
| K39-065 | 65 | 77 | 9,5 | 3 |
| K39-110 | 110 | 125 | 12 | 4.5 |
