Uszczelnienie dławnicowe

K34 is a three piece single acting sealing set which consists of one reinforced cotton fabric or thermoplastic elastomer back-up ring , one specially designed multiple lipped elastomeric nitrile rubber sealing element and one thermoplastic anti-extrusion ring.

PRODUCT ADVANTAGES
• Effective sealing during vibration and shock loading
• Improved sealing gap due to the active anti-extrusion ring
• Superior sealing effect in high pressures
• Alternative design to packings

APPLICATION
Earth moving equipment , excavators , cranes , loading platforms , and special machinery.

MATERIAL		CODE
NBR	80 SHORE A	NB⁹⁰⁰¹
COTTON FABRIC NBR		NB⁸⁰⁰⁵
TPE		TP⁵⁵⁰¹
POM		PM⁹⁹⁰¹

OPERATING CONDITIONS
MEDIA	Mineral oils(DIN 51524)	HFA and HFB	HFC
TEMPERATURE	-30°C +105°C	+5°C +60°C	-30°C +60°C
PRESSURE	≤700 Bar	≤700 Bar	≤700 Bar
SPEED	≤0.5 m/sn	≤0.5 m/sn	≤0.5 m/sn

Note: The above data are maximum values and cannot be used at the same time.

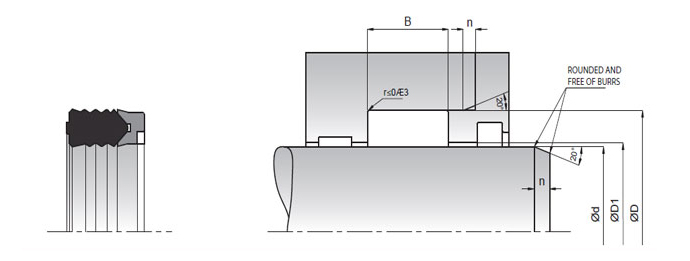

KASTAŞ NO	d (f8)	D(H10)	B (-0/+0,4	D1 (±0,1)	n
K34-030	30	43	20	30.4	5
K34-032	32	47	22,5	32,4	5
K34-035	35	47	22,5	35,4	5
K34-040	40	55	22,5	40,4	5
K34-045	45	60	22,5	45,4	5
K34-050	50	65	22,5	50,4	5
K34-050/1	50	65	24,5	50,4	5
K34-055	55	70	22,5	55,4	5
K34-060	60	75	22,5	60,4	5
K34-063	63	83	37	63,4	7
K34-070	70	85	22,5	70,4	5
K34-070/1	70	90	30	70,4	5
K34-080	80	100	30	80,4	5
K34-080/1	80	95	22.5	80.4	5
K34-085	85	95	22,5	85,4	5
K34-090	90	110	30	90,4	5
K34-100	100	120	30	100,4	5
K34-110	110	130	32,5	110,4	7
K34-115	115	130	30	115,7	7
K34-115/1	115	125	22,5	115,7	7
K34-120	120	140	30	120,7	7
K34-125	125	145	29,6	125,7	7
K34-140/1	140	160	30	140,7	7
K34-140/2	140	160	28	140,7	7
K34-160	160	180	28	160,7	7
K34-180	180	205	35	180,7	7
K34-200	200	225	35	200,7	7
K34-220/1	220	245	35	220.4	7
K34-260	260	280	30	260,7	7
K34-260/1	260	285	35	260,7	7
