K04 is a seven piece single acting sealing set which consists of one reinforced cotton fabric backup ring , one thermoplastic header ring , three reinforced cotton fabric middle rings , and two elastomeric nitrile rubber middle rings.
PRODUCT ADVANTAGES
• Adjustable seal housing height due to the reason of being
used in open grooves.
• Functions even with poor surfaces
• Robust seal
• Easy installation and removal
• Long service life
• Able to work until the maintenance of continuity systems
because of the adjustable housing
• Very good sealing performance both in high and low
pressures
APPLICATION
Especially used in hard working conditions such as iron and steel
industry , mining equipment , marine hydraulics , scrap cutters and
special cylinders where the actual conditions are difficult to
predict.
| MATERIAL | CODE | |
| NBR | 90 SHORE A | NB9001 |
| COTTON FABRIC NBR | NB8008 | |
| POM | PM9903 |
OPERATING CONDITION |
|||
| TEMPERATURE | -30°C +105°C | +5°C +60°C | -30°C +60°C |
| PRESSURE | ≤400 Bar | ≤400 Bar | ≤400 Bar |
| SPEED | ≤0.5 m/sn | ≤0.5 m/sn | ≤0.5 m/sn |

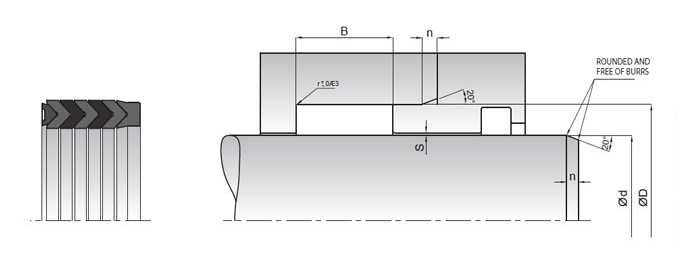

| KASTAŞ NO | d(f8) | D(H9) | B(-0/+0,2) | n |
|---|---|---|---|---|
| K04-012 | 12,75 | 25,4 | 19,05 | 4 |
| K04-019 | 19,05 | 28,5 | 17,46 | 4 |
| K04-020 | 20,62 | 33,32 | 33,32 | 4 |
| K04-022 | 22,22 | 34,92 | 19,05 | 4 |
| K04-031 | 31,75 | 44,45 | 25,4 | 4 |
| K04-038 | 38,1 | 50,8 | 25,4 | 4 |
| K04-038/1 | 38,1 | 53,98 | 25,4 | 4 |
| K04-044 | 44,45 | 57,15 | 25,4 | 4 |
| K04-044/1 | 44,45 | 63,5 | 38,1 | 6 |
| K04-044/2 | 44,45 | 69,85 | 50,8 | 8 |
| K04-050 | 50,8 | 63,5 | 25,4 | 4 |
| K04-050/1 | 50,8 | 65 | 25,4 | 4 |
| K04-050/2 | 50,8 | 66,67 | 25,4 | 6 |
| K04-050/3 | 50,8 | 69,85 | 25,4 | 6 |
| K04-053 | 53,98 | 69,85 | 28,5 | 6 |
| K04-057 | 57,16 | 76,2 | 25,4 | 6 |
| K04-063 | 63,5 | 76,2 | 28,5 | 4 |
| K04-063/1 | 63,5 | 78 | 41 | 4 |
| K04-063/2 | 63,5 | 79,37 | 28,5 | 6 |
| K04-063/3 | 63,5 | 82,55 | 28,5 | 6 |
| K04-069 | 69,85 | 88,9 | 31,75 | 6 |
| K04-076 | 76,2 | 88,9 | 25,4 | 4 |
| K04-076/1 | 76,2 | 95,25 | 31,75 | 6 |
| K04-076/2 | 76,2 | 101,6 | 38.1 | 8 |
| K04-082 | 82,55 | 101,6 | 31.75 | 6 |
| K04-088 | 88,9 | 104,8 | 28,5 | 6 |
| K04-088/1 | 88,9 | 107,95 | 30,16 | 6 |
| K04-088/2 | 88,9 | 114,3 | 38,1 | 8 |
| K04-095 | 95,25 | 114,3 | 30,16 | 6 |
| K04-101 | 101,6 | 127 | 38,1 | 8 |
| K04-107 | 107,95 | 127 | 31,75 | 6 |
| K04-107/1 | 107,95 | 130,18 | 38,1 | 6 |
| K04-114 | 114,3 | 133,36 | 31,75 | 6 |
| K04-114/1 | 114,3 | 139,7 | 38,1 | 8 |
| K04-127 | 127 | 158,75 | 60 | 8 |
| K04-209 | 209,55 | 228,6 | 38,1 | 6 |
