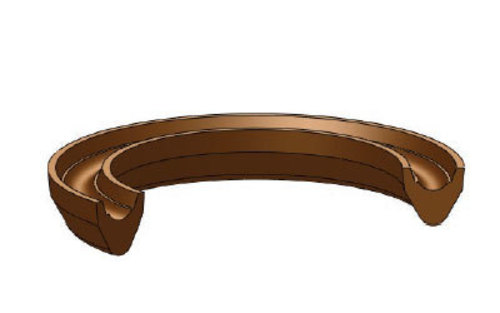

K150 is a single acting chevron ring specially designed to work in water , water-oil mixtures and produced from special formulated reinforced cotton fabric with nitrile rubber.
PRODUCT
ADVANTAGES
• Capable of standing pressure changes
• Long service life
• Works in water and water-oil mixture media
• Adjustable housing
APPLICATION
Mining and high pressure cleaning equipment.
| MATERIAL | CODE | |
| COTTON FABRIC NBR | FB8502 |
| OPERATING CONDITIONS | |
| MEDIA | Water and water-oil mixture |
| TEMPERATURE | -30°C +80°C |
| PRESSURE | ≤250 Bar |
| SPEED | ≤2.0 m/sn |
| SURFACE ROUGHNESS | Ra | Rmax |
| Sliding Surface Ød | ≤0.3 μm | ≤4 μm |
| Groove Base ØD | ≤1.5 μm | ≤10 μm |
INSTALLATION
K150 chevron ring is used in open housing. It is very important
that the assembly tools must be of soft material and have no sharp
edges. Before installation the sealing element must be oiled with
system oil.
NOTES
Due to the special formulated reinforced cotton fabric with nitrile
rubber service life is much longer than the normal cotton fabric
seals.
| KASTAŞ NO | D (H9) | d (f7) | b | b1 | n |
|---|---|---|---|---|---|
| K150-024 | 24 | 15 | 5 | 3 | 6 |
| K150-025 | 25 | 15 | 5 | 3 | 6 |
| K150-026 | 26 | 18 | 5 | 3 | 6 |
| K150-028 | 28 | 15 | 6,5 | 4 | 7 |
| K150-028/1 | 28 | 18 | 5,5 | 3,5 | 6 |
| K150-028/2 | 28 | 18 | 6 | 4 | 6 |
| K150-030 | 30 | 15 | 7,5 | 4,5 | 8 |
| K150-030/1 | 30 | 16 | 7 | 4 | 8 |
| K150-030/2 | 30 | 18 | 6 | 3,5 | 7 |
| K150-030/3 | 30 | 20 | 5,5 | 3,3 | 6 |
| K150-032 | 32 | 18 | 7,1 | 4,6 | 8 |
| K150-032/1 | 32 | 20 | 6,7 | 4,5 | 7 |
| K150-032/2 | 32 | 22 | 5.7 | 3.3 | 6 |
| K150-034 | 34 | 18 | 6 | 4 | 8 |
| K150-035 | 35 | 20 | 7,5 | 4,5 | 8 |
| K150-035/1 | 35 | 22 | 7 | 4,5 | 7 |
| K150-035/2 | 35 | 24 | 6 | 4 | 7 |
| K150-035/3 | 35 | 25 | 5,5 | 3,3 | 6 |
| K150-037 | 37 | 25 | 6.7 | 3.6 | 7 |
| K150-037/1 | 37 | 20 | 7,5 | 4,5 | 9 |
| K150-038 | 38 | 22 | 8,5 | 3,5 | 8 |
| K150-038/1 | 38 | 25 | 7 | 4,6 | 7 |
| K150-038/2 | 38 | 28 | 6,1 | 4,1 | 6 |
| K150-045 | 45 | 30 | 7,5 | 4,5 | 8 |
| K150-048 | 48 | 36 | 6 | 3,5 | 7 |
| K150-048/1 | 48 | 38 | 6 | 3,5 | 6 |
| K150-056 | 56 | 36 | 10 | 6 | 9 |
| K150-060 | 60 | 45 | 7,5 | 4,5 | 8 |
| K150-060/1 | 60 | 50 | 5,5 | 3,5 | 6 |
| K150-065 | 65 | 50 | 7,5 | 4,5 | 8 |
| K150-065/1 | 65 | 55 | 5,5 | 3,5 | 6 |
| K150-070 | 70 | 55 | 7,5 | 4,5 | 8 |
| K150-076 | 76 | 60 | 8 | 5 | 8 |
| K150-080 | 80 | 65 | 7.5 | 4.5 | 8 |
