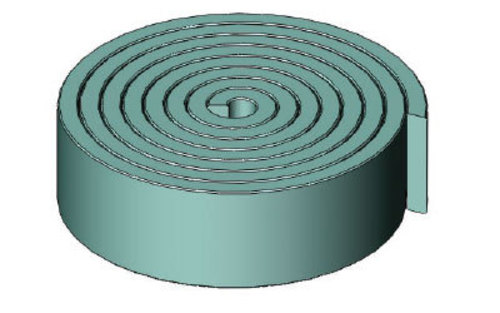

KBT is a rod-piston guide strip
designed to be used in medium duty hydraulic and pneumatic
systems.
PRODUCT ADVANTAGES
• Easy assembly
• Medium load bearing capacity
• Able to work on dry conditions
• Easy to use in all dimensions because of being strips
• Low friction , free of stick-slip
• Superior load cushioning effect
• Able to absorb the small particles that is in the
system
APPLICATION
Construction machinery , cranes , injection moulding machines ,
control and regulation equipment , chemical industry and standard
cylinders.
| MATERIAL |
|
CODE |
|
PTFE (Bronze filled) |
|
PT6003 |
| OPERATING
CONDITION |
|
|
|
MEDIA |
Mineral oils(DIN 51524) |
HFD |
| TEMPERATURE |
-200°C +200°C |
-40°C +200°C |
| CONTACT PRESSURE |
≤15 N/mm2 |
≤15 N/mm2 |
|
SPEED |
≤15.0 m/sn |
≤15.0 m/sn |
≤15.0 m/sn |
Note: The above data are maximum values and cannot be used at the
same time.
|
SURFRACE ROUGHNESS |
Ra |
Rmax |
| Sliding Surface Ød |
≤0.3
μm |
≤2.5 μm |
| Groove Base ØDb- Ødp |
≤1.6
μm |
≤10
μm |
| Groove Flanks B |
≤3.2
μm |
≤12 μm |
INSTALLATION
Easily assembled into the housing by hand. It is very important that the assembly tools must be of soft material and have no sharp edges. Before installation the wiper must be oiled with system oil.
NOTES
We recommend cutting the ready strip with 30° angle before using it. The length of the strip can be using the formula in section Calculation of Width & Cross Sectional Thickness of Guide Elements. The permissible sealing gap values of KBT guide strip is given in the below table.
| PERMISSIBLE SEALING GAP
|
|
|
Diameter (mm) |
S max (mm)
|
| 10-25 |
0.25±0.05 |
| 26-100 |
0.30±0.05
|
| 101-300 |
0.40±0.10
|
| 301 -600 |
0.60±0.15
|
| 601-1200 |
0.80±0.20
|
| > 1200 |
0.90±0.30 |
Note: The largest sealing gap value occurring on the non-pressurized side of the seal does have a vital importance for the function of the seal and in this respect it is quite important to use the S value lower than the above indicated numbers.
