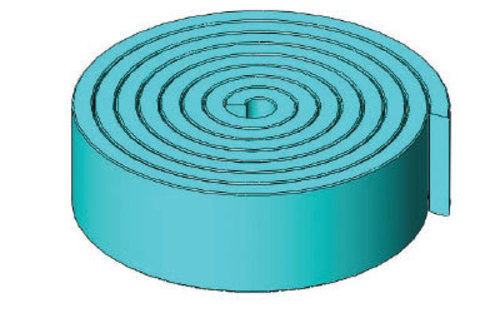

KPB is a piston - rod guide strip designed to be used in heavy duty hydraulic and pneumatic systems.
PRODUCT
ADVANTAGES
• High load bearing capacity
• Minimum static and dynamic friction coefficient for a
minimum energy loss and operating temperature
• Able to be used behind the sealing element on dry
condition
• High dimension stability during the operating
temperatures
• Easy assembly
• Wide range of dimensions
• Easy to use in all dimensions because of being strips
APPLICATION
Mobile hydraulics , excavators , mining equipment , marine
hydraulics , presses and heavy duty cylindersp>
| MATERIAL | CODE | |
| POLYESTER RESIN | PR6501 |
| OPERATING CONDITION | |||
| MEDIA | Mineral oils(DIN 51524) | HFA ve HFB | HFC |
| KASTAŞ NO | a | B (-0/+0,2 | b |
|---|---|---|---|
| KPB 2,5X10 | 2,5 | 10 | 9,8 |
| KPB 2,5X15 | 2,5 | 15 | 14,8 |
| KPB 2,5X20 | 2,5 | 20 | 19,8 |
| KPB 2,5X25 | 2,5 | 25 | 24,5 |
| KPB 2,5X5,6 | 2,5 | 5,6 | 5,4 |
| KPB 2,5X9,7 | 2,5 | 9,7 | 9,5 |
| KPB 2X10 | 2 | 10 | 9,8 |
| KPB 2X15 | 2 | 15 | 14,8 |
| KPB 2X20 | 2 | 20 | 19,8 |
| KPB 2X25 | 2 | 25 | 24,5 |
| KPB 3X15 | 3 | 15 | 14,8 |
| KPB 3X20 | 3 | 20 | 19,8 |
| KPB 3X25 | 3 | 25 | 24,5 |
| KPB 4X15 | 4 | 15 | 14,8 |
| KPB 4X20 | 4 | 20 | 19,8 |
| KPB 4X25 | 4 | 25 | 24,5 |
| KPB 4X9,7 | 4 | 9,7 | 9,5 |
| KPB-3X30 | 3 | 30 | 29.5 |
| KPB-4X10 | 4 | 10 | 9.8 |
