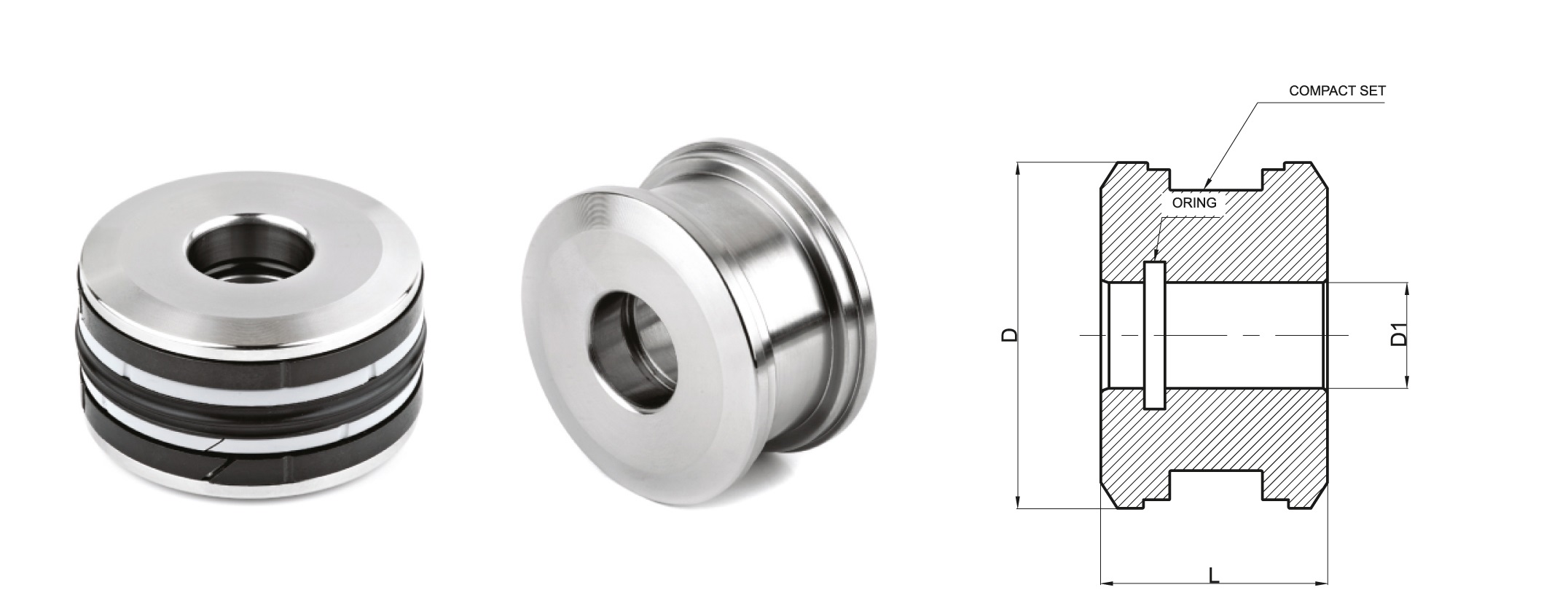

CODE | COMPACT SET | ORING | D | D1 | L | kg |
| GDC-P 32x15 | 32x24x15,5x3,10 | BRAK | 32 | 15 | 30 | 0,100 kg |
| GDC-P 35x16 | 35x25x16,4x6,35 | 16x3 | 35 | 16 | 40 | 0,150 kg |
| GDC-P 40x16 | 40x35x15,5x3,20 | 16x3 | 40 | 16 | 40 | 0,250 kg |
| GDC-P 40x20 | 40x32x15,5x3,20 | 20x3 | 40 | 20 | 40 | 0,210 kg |
| GDC-P 45x20 | 45x35x16,4x6,35 | 20x3 | 45 | 20 | 40 | 0,270 kg |
| GDC-P 50x16 | 50x38x20,5x4,20 | 16x3 | 50 | 16 | 40 | 0,370 kg |
| GDC-P 50x20 | 50x38x20,5x4,20 | 20x3 | 50 | 20 | 40 | 0,330 kg |
| GDC-P 50x30 | 50x38x20,5x4,20 | 30x3 | 50 | 30 | 40 | 0,210 kg |
| GDC-P 55x20 | 55x39x20,5x3,10 | 20x3 | 55 | 20 | 40 | 0,400 kg |
| GDC-P 60x20 | 60x48x20,5x4,20 | 20x3 | 60 | 20 | 40 | 0,570 kg |
| GDC-P 63x25 | 63x51x20,5x4,20 | 25x3 | 63 | 25 | 40 | 0,580 kg |
| GDC-P 63x30 | 63x51x20,5x4,20 | 30x3 | 63 | 30 | 40 | 0,520 kg |
| GDC-P 65x25 | 65x49x20,5x3,10 | 25x3 | 65 | 25 | 40 | 0,580 kg |
| GDC-P 70x25 | 70x58x20,5x4,20 | 25x3 | 70 | 25 | 40 | 0,790 kg |
| GDC-P 70x30 | 70x58x20,5x4,20 | 30x3 | 70 | 30 | 40 | 0,720 kg |
| GDC-P 75x32 | 75x55x22,4x6,35 | 32x3 | 75 | 32 | 50 | 0,900 kg |
| GDC-P 80x27 | 80x66x22,4x5,20 | 27x3 | 80 | 27 | 50 | 1,330 kg |
| GDC-P 80x30 | 80x66x22,4x5,20 | 30x3 | 80 | 30 | 50 | 1,280 kg |
| GDC-P 85x32 | 85x65x22,4x6,35 | 32x3 | 85 | 32 | 50 | 1,320 kg |
| GDC-P 90x30 | 90x76x22,4x5,20 | 30x3 | 90 | 30 | 50 | 1,750 kg |
| GDC-P 100x33 | 100x86x22,4x5,20 | 33x3 | 100 | 33 | 50 | 2,220 kg |
| GDC-P 100x40 | 100x86x22,4x5,20 | 40x4 | 100 | 40 | 50 | 2,050 kg |
| GDC-P 110x40 | 110x96x22,4x5,20 | 40x4 | 110 | 40 | 50 | 2,640 kg |
| GDC-P 115x40 | 115x101x22,4x5,20 | 40x4 | 115 | 40 | 50 | 3,030 kg |
| GDC-P 120x40 | 120x106x22,4x5,20 | 40x4 | 120 | 40 | 50 | 3,270 kg |
| GDC-P 125x40 | 125x103x26,5x5,10 | 40x4 | 125 | 40 | 50 | 3,290 kg |
| GDC-P 130x40 | 130x105x25,4x6,35 | 40x4 | 130 | 40 | 60 | 4,320 kg |
| GDC-P 140x40 | 140x123x26,5x7,20 | 40x4 | 140 | 40 | 60 | 5,570 kg |
| GDC-P 150x40 | 150x125x25,4x6,35/1 | 40x4 | 150 | 40 | 60 | 6,150 kg |
| GDC-P 160x50 | 160x143x26,5x7,20 | 50x4 | 160 | 50 | 60 | 7,240 kg |
| GDC-P 170x50 | 170x145x25,4x12,70 | 50x4 | 170 | 50 | 65 | 12,640 kg |
| GDC-P 180x50 | 180x163x26,5x7,20 | 50x4 | 180 | 50 | 60 | 9,600 kg |
| GDC-P 190x50 | 190x165x25,4x12,7 | 50x4 | 190 | 50 | 65 | 11,100 kg |
| GDC-P 200x55 | 200x175x25,4x12,70/1 | 55x4 | 200 | 55 | 65 | 12,630 kg |
| GDC-P 220x70 | 220x190x35,4x6,35/1 | 70x4 | 220 | 70 | 70 | 15,610 kg |
| GDC-P 250x80 | 250x225x25,4x12,70 | 80x4 | 250 | 80 | 70 | 21,410 kg |
