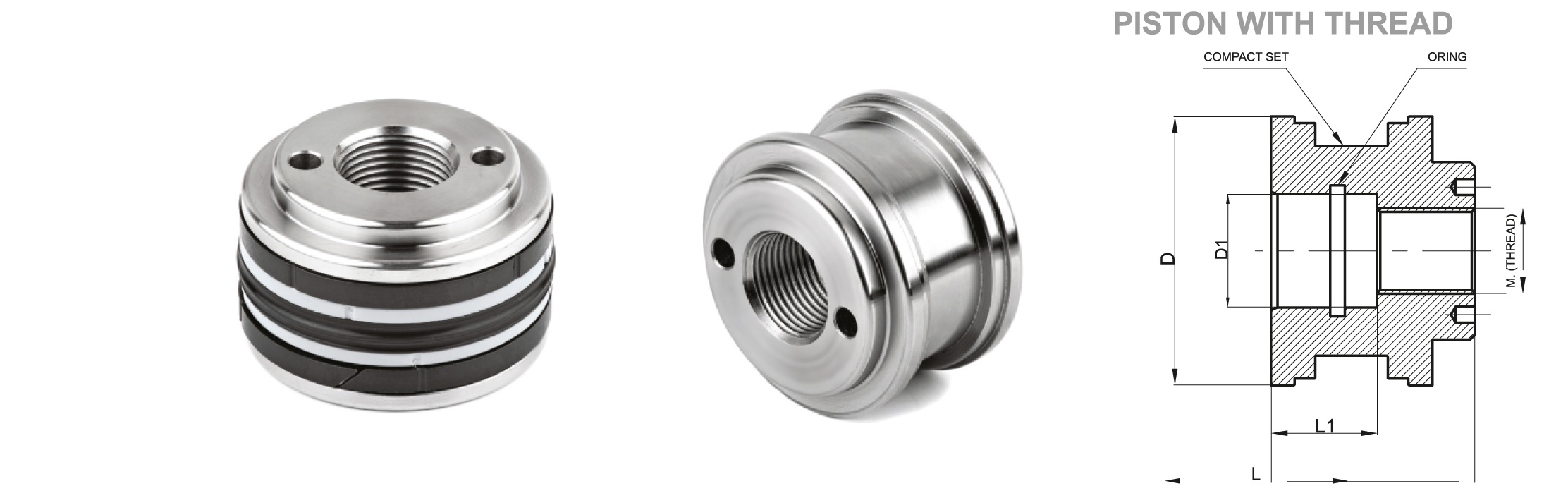

| CODE | COMPACT SET | ORING | D | D1 | L | L1 | THREAD | kg |
| GDC-PV-40 | 40x32x15,5x3,20 | 20,22x3,53 | 40 | 20 | 45 | 22,5 | 18x1,5 | 0,230 kg |
| GDC-PV-45 | 45x35x16,40x6,35 | 20,22x3,53 | 45 | 20 | 45 | 22,5 | 18x1,5 | 0,300 kg |
| GDC-PV-50 | 50x38x20,5x4,20 | 24,99x3,53 | 50 | 25 | 45 | 22,5 | 20x2 | 0,350 kg |
| GDC-PV-55 | 55x39x20,5x3,10 | 24,99x3,53 | 55 | 25 | 45 | 22,5 | 20x2 | 0,420 kg |
| GDC-PV-60 | 60x48x20,5x3,1 | 29,75x3,53 | 60 | 30 | 45 | 22,5 | 27x2 | 0,510 kg |
| GDC-PV-63 | 63x51x20,5x4,20 | 29,75x3,53 | 63 | 30 | 45 | 22,5 | 27x2 | 0,600 kg |
| GDC-PV-65 | 65x49x20,5x3,10 | 29,75x3,53 | 65 | 30 | 45 | 22,5 | 27x2 | 0,550 kg |
| GDC-PV-70 | 70x58x20,5x4,20 | 29,75x3,53 | 70 | 30 | 45 | 22,5 | 27x2 | 0,820 kg |
| GDC-PV-75 | 75x55x22,4x6,35 | 29,75x3,53 | 75 | 30 | 50 | 25 | 27x2 | 0,970 kg |
| GDC-PV-80 | 80x66x22,4x5,20 | 34,52x3,53 | 80 | 35 | 50 | 25 | 30x2 | 1,200 kg |
| GDC-PV-85 | 85x65x22,4x6,35 | 39,70x3,53 | 85 | 40 | 50 | 25 | 35x2 | 1,200 kg |
| GDC-PV-90 | 90x76x22,4x5,20 | 39,70x3,53 | 90 | 40 | 50 | 25 | 35x2 | 1,560 kg |
| GDC-PV-100 | 100x86x22,4x5,20 | 45x4 | 100 | 45 | 50 | 25 | 40x2 | 1,920 kg |
| GDC-PV-110 | 110x96x22,4x5,20 | 45x4 | 110 | 45 | 50 | 25 | 40x2 | 2,500 kg |
| GDC-PV-115 | 115x101x22,4x5,20 | 45x4 | 115 | 45 | 50 | 25 | 40x2 | 2,860 kg |
| GDC-PV-120 | 120x106x22,4x5,20 | 50x4 | 120 | 50 | 60 | 30 | 45x2 | 3,000 kg |
| GDC-PV-125 | 125x103x56,5x5,10 | 50x4 | 125 | 50 | 60 | 30 | 45x2 | 3,750 kg |
| GDC-PV-130 | 130x105x25,4x6,35 | 60x4 | 130 | 60 | 60 | 30 | 50x2 | 3,650 kg |
| GDC-PV-140 | 140x123x26,5x7,20 | 60x4 | 140 | 60 | 60 | 30 | 55x2 | 4,850 kg |
| GDC-PV-150 | 150x125x25,4x6,35/1 | 65x4 | 150 | 65 | 60 | 30 | 60x2 | 5,150 kg |
| GDC-PV-160 | 160x143x26,5x7,20 | 65x4 | 160 | 65 | 60 | 30 | 60x2 | 6,650 kg |
| GDC-PV-170 | 170x145x25,4x12,70 | 70x4 | 170 | 70 | 65 | 30 | 65x2 | 7,670 kg |
| GDC-PV-180 | 180x163x26,5x7,20 | 75x4 | 180 | 75 | 60 | 30 | 70x2 | 8,530 kg |
| GDC-PV-190 | 190x165x22,4x12,7 | 85x4 | 190 | 85 | 65 | 30 | 75x2 | 10,750 kg |
| GDC-PV-200 | 200x175x25,40x12,70/1 | 80x5 | 200 | 80 | 70 | 30 | 75x2 | 12,110 kg |
| GDC-PV-220 | 220x190x35,40x6,35/1 | 90x5 | 220 | 90 | 70 | 30 | 85x2 | 13,940 kg |
| GDC-PV-230 | 230x205x25,4x12,70 | 100x5 | 230 | 100 | 70 | 30 | 95x2,5 | 15,570 kg |
| GDC-PV-250 | 250x225x25,40x12,70 | 100x5 | 250 | 100 | 70 | 30 | 95x2,5 | 19,180 kg |
