A-TUBE TUCL Rury na teleskopy

Rury na teleskopy chromowane po zewnątrz, tol. wew H8/H9

Chrome plated steel tubes SRB finished or honed Introduction.

Chrome plated Steel tubes SRB finished or Honed made from E355 + SR steel.Chrome plated steel tubes SRB finished or honed are used at telescopic hydraulic cylinders. The chrome surface is giving good wear and corrosion resistance. The Skived and Roller burnished process is a complex process that is increasing the roughness qualities of the surface. The skiving knives pass first scraping the inside layer of metal. Burnishing rollers are passing afterwards cold working the tube and creating an internal mirror surface finish.We recommend A-TUBE TUCL for telescopic cylinders.

SubtitleA-TUBE TUCL Technical Properties.

Diameter Tolerance for OD: ISO-f7. For ID: ISO-H8/H9 – depending on the wall thickness. We can provide special tolerance at premium price.
Ovality – max ½ from the OD diameter tolerance. For ID – in the limits of its tolerance.
Eccentricity is maximum 3% of the wall thickness according to EN 10305-2.
Surface Roughness – for OD is Ra = max 0.20 µm. Internal surface Roughness for SRB finished tubes is Ra = max 0.25 µm. For Honed tubes Ra = max 0.40 µm.
Surface Hardness – Chrome Layer hardness is minimum 900 HV 0.1.
Straightness for OD> 40 [mm] is max 0.2[mm]/1000[mm].
Chrome Layer thickness is minimum 20[µm].
Corrosion Resistance is given by the salt spray test results. These tests are following the ISO 9227 and ISO 10289 standards. The results of these tests are giving the rating of our products.

ASO HYDRAULICS & PNEUMATICS chrome plated steel tubes SRB finished or honed corrosion resistance.

Standard Corrosion Resistance for Φ≥40 is R9/200h according to NSS tests.EXTRA

Corrosion Resistance for Φ≥40-140 is R10/120h and R9/500h according to NSS tests.EXTRA PLUS

Corrosion Resistance for Φ≥40-140 is R10/500h according to NSS tests.
We can provide Double Chrome Layer at premium price.Weldability of the chrome plated steel tubes SRB or Hone finished is excellent.

Machinability of the chrome plated steel tubes SRB or Hone finished is excellent.Packaging A-TUBE products are supplied in 3 different packaging options:

Standard plastic sleeves or paper tubes (depending on the diameter size) packed in bundles. The tubes are oiled inside and closed with end caps.
Special Packaging (seaworthy protected) with additional cost is made with aluminum foil or vacuum bags.

As an Extra protection with additional cost we can provide also wooden boxes.

Marking in ASO HYDRAULICS & PNEUMATICS has a full trace-ability.

Each tube is marked individually on the plastic/paper tube with info about the date, heat no production order tolerance and so on. The batch has a label with the following information: Order no, Item no, Heat no., Steel Grade, OD x ID; total length of the batch, Weight, no of pieces in the batch.

Chemical Composition table.

^{*CEV calculated with the formula:}
formula CEV 2.3.3

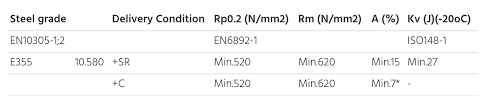

Mechanical Properties table.

Dimensional Properties table.

^{*Some diameters may be subject to a minimum quantity requested}
^{**Lengths may vary depending on the Chroming process used}
^{***Other diameters, lengths/cut lengths can be provided at premium price}

Chrome plated steel tubes SRB finished or honed Introduction.

SubtitleA-TUBE TUCL Technical Properties.

Marking in ASO HYDRAULICS & PNEUMATICS has a full trace-ability.

Chemical Composition table.

Mechanical Properties table.

Dimensional Properties table.

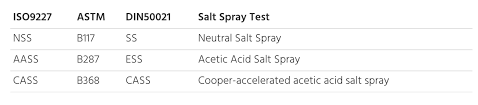

SubtitleCorrosion Test standards table
