BACI ASOCHROME AISI304

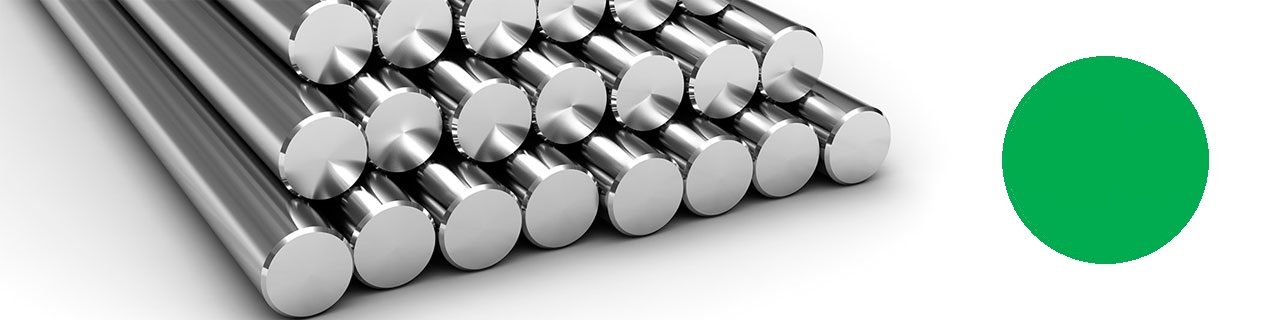

Chrome plated Stainless Steel bars made from AISI 304 stainless steel.

Stainless steel, also known as inox, is a steel alloy with a minimum of 10.5% chromium content by mass.

Corrosion resistance of a stainless steel is affected if the component is not chrome plated and used in a non-oxygenated environment.

Chrome plated stainless steel bars made from this austenitic stainless steel are used in applications working in extreme conditions.

Furthermore, we define extreme as those working in extremely aggressive conditions.

We recommend A-CHROME BACI 304 for all applications working in a highly corrosive environment.

• Diameter Tolerance Standard is ISO-f7. We can provide special tolerance at premium price.
• Residual Magnetism Standard is Max. 50 Gauss. We can provide special magnetism at premium price.
• Roundness – max ½ from the diameter tolerance.
• Surface Roughness is Ra = max 0.20 µm.
• Surface Hardness due to the chrome Layer hardness is minimum 900 HV 0,1.
• Straightness for ∅
• Chrome Layer thickness for ∅≤19.05 [mm] is minimum 15[µm] and for ∅>20[mm] is minimum 20[µm].
• Corrosion Resistance results are based on a salt spray tests. These tests are following the ISO 9227 and ISO 10289 standards. The results of these tests are giving the rating of our products.

Standard Corrosion Resistance is R9/1.200h according to NSS tests. For reference only.

Weldability of A-CHROME BACI 304 is excellent by all standard methods.

Machinability of A-CHROME BACI 304 is difficult because of high strength, high work hardening tendency and poor thermal conductivity.

Packaging Our products are supplied in 3 different packaging options. Standard Packaging for us means plastic sleeves or paper tubes (depending on the product’s diameter).

Special Packaging (seaworthy protected) with additional cost is made with aluminum foil or vacuum bags.

As an Extra protection with additional cost we can provide also wooden boxes.
