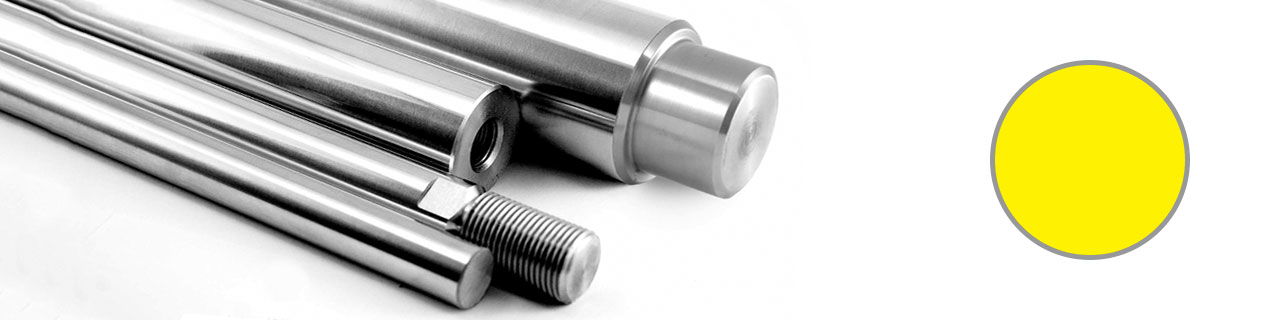

Induction hardening is a form of heat treatment in which the linear shafts are heated by induction heating and then quenched. This heat treatment is increasing the hardness as well as the brittleness of the linear shafts.Induction hardened linear shafts present a soft shaft core which ensures a good resilience. Linear Shafts may appear the same for an untrained eye but the differences are notable. There are significant performance differences due to the manufacturing processes used to achieve the required standards. The linear inner race demands the highest levels of material cleanliness, surface topography, surface hardening, diameter, taper and roundness, surface finish and straightness in order to provide optimum performance at minimal maintenance and long life. A-Line W Linear shafts are used as piston rods for pneumatic cylinders as well as in all linear applications.

Diameter Tolerance Standard for linear shafts is ISO-h6. We can also provide special tolerance at premium price.

Length tolerance: 0/+200 [mm].

Surface Roughness is R_a = max 0.20 µm.

Surface Hardness Steel-grade Cf53 IH: 62+2HRC.

Packaging Linear shafts are degreased and oiled, placed in bundles that are wrapped in wax paper and raffia .As an Extra protection with additional cost we can provide also wooden boxes.
