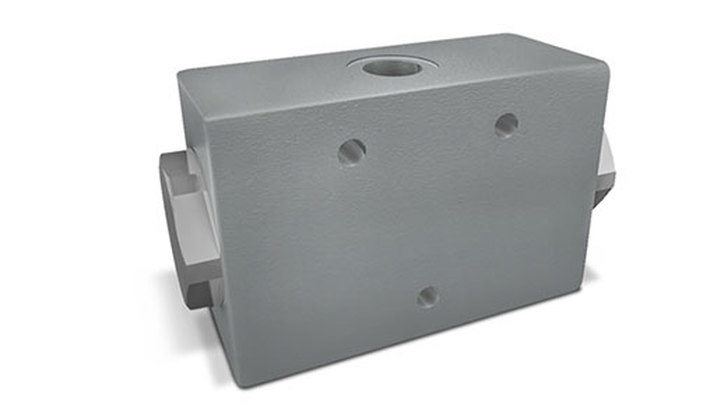

These valves allows the division of inlet flow into two equals parts (50/50) and they unify it in the reverse direction irrespective
of any pressure differences and flow. These valves are used when two equal actuators, that are not mechanically
coupled, supplied by the same pump and controlled by a single distributor, must move simultaneously both at
input and output.
MATERIALS AND FEATURES:
Body: zinc-plated steel
Internal parts: hardened and ground steel
Seals: BUNA N standard and Teflon
Tightness: by diameter combination. Minor leakage
Cylinder stroke error tolerance of ± 3% Any synchronisation
differences are compendated by the
terminal position of the stroke
APPLICATIONS:

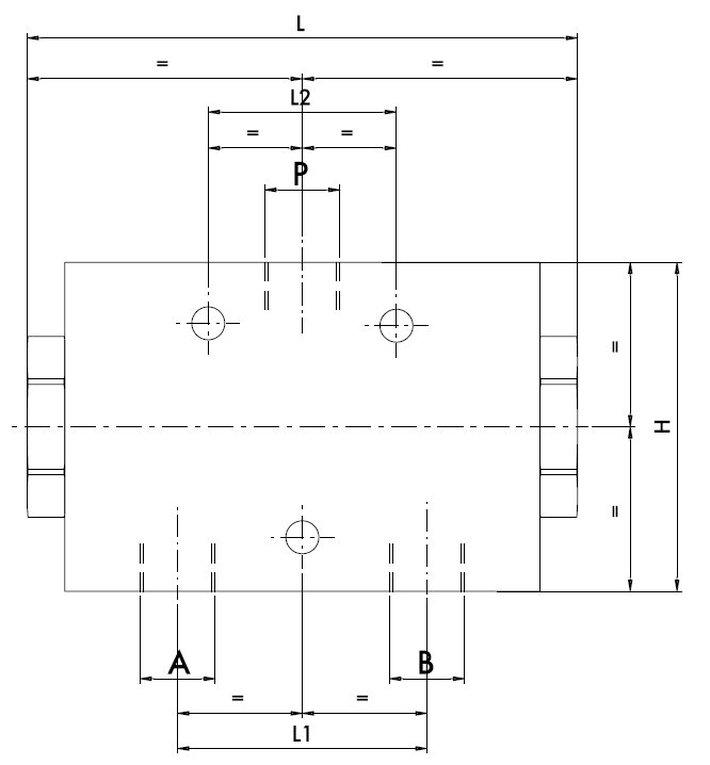

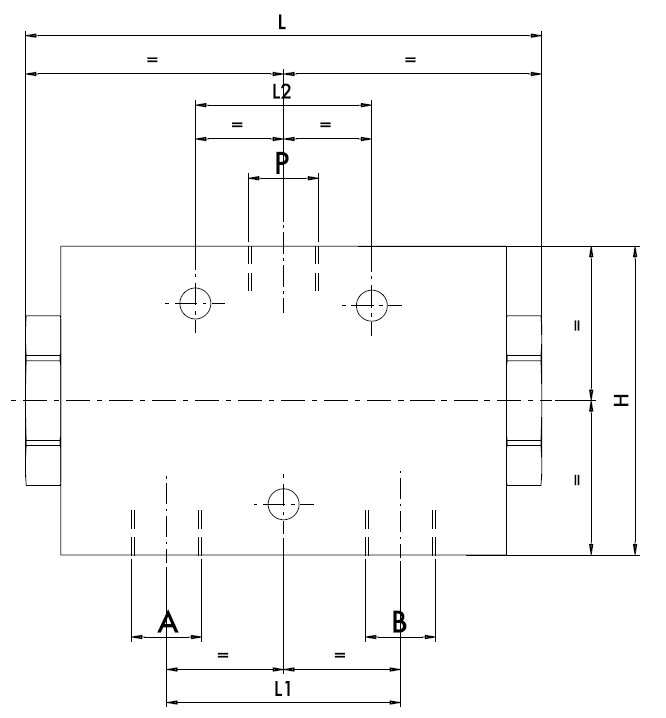

Connect P to pressure flow and A and B to the actuators
