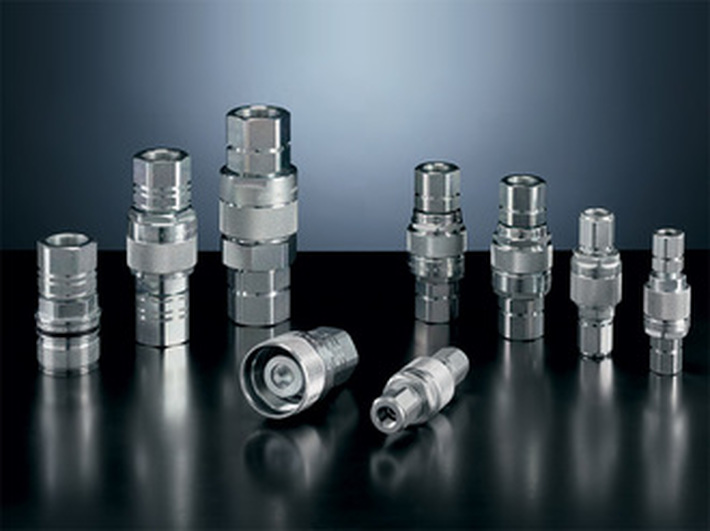

The V series quick-release couplings are particularly prevalent in the East Europe and German markets and they are interchangeable with
the main local manufacturers. Their particular structure allows a wide range of available threads:
this eliminates the need for adaptors and therefore also a reduction in costs. Mechanical strength and the impossibility of an accidental release
of the male from the female makes very safe the use of these screw-on couplings: they are very suitable in heavy hydraulic applications
either for adverse environment conditions or for high work pressures. Fields of application: industry, iron industry, oil plant, earth moving
machinery and similar service vehicles.
Interchangeability: with similar couplings of the major German
manufacturers, with FASTER CVV series,
STUCCHI VD series, DNP PVV3 series
Shut-off system: poppet valve
Latching system: screw-on
Connection: screwing-on the male’s sleeve
Disconnection: screwing-off the male’s sleeve
Connectability: allowed under residual pressure
Disconnection under pressure: allowed under residual pressure
Threads: BSP – NPTF –DIN 2353 L/S
Sizes: 1/4" , 3/8”, 1/2”, 3/4”, 1”
Materials: Female in high grade carbon steel
Sleeve and male in high grade
carbon steel
Steel hardened valve
Surface treatment:
zinc plating and Cr III passivation
Springs in C72 steel
Seals: standard NBR, on request VITON
Antiextrusion rings: PTFE
Working Temperatures: NBR -20°C +100°C
VITON -15°C +140°C
For temperature exceeding this values, the quick-release couplings will be
supplied with all components in steel.
