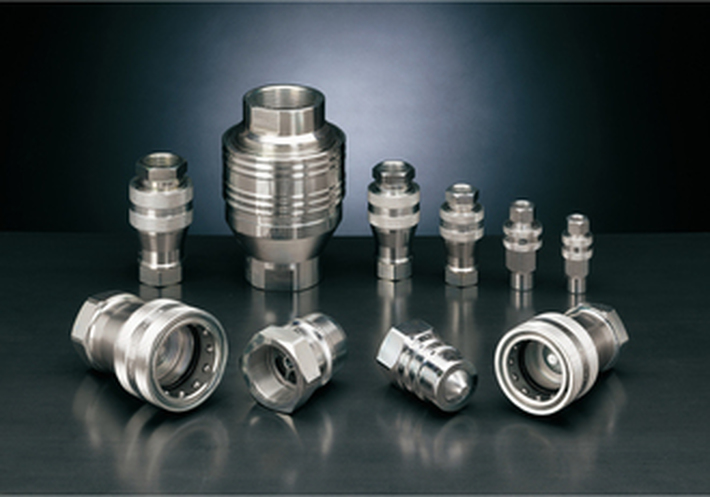

In Italian language TV means “TIPO VECCHIO”(old type) because this series of couplings is the first that MB began to produce from
1956 on his own drawings: TV series is well known in Italy and now MB is the only producer of it.
These couplings are suitable for any hydraulic application in industry and in agriculture: the hardiness and the wide range of sizes are
their peculiar features. The 1.1/4”, 1.1/2” and 2” sizes are also available in brass and in stainless steel AISI 316.
Features:
Interchangeability: according to MB internal standard
Shut-off system: poppet valve
Latching system: balls - bearing
Connection: pulling back the sleeve
Disconnection: pulling back the sleeve
Connectability: without pressure
Disconnection under pressure: not allowed
Threads: BSP
Sizes: 1/4" , 3/8", 1/2", 3/4", 1", 1.¼ ", 1.½ ", 2",2.1/2", 3"
Materials: Female in carbon steel
Male in high grade carbon steel,
induction hardened
Steel hardened valve
Surface treatment:
zinc plating and Cr III passivation
Springs in C72 steel
High resistance balls 100 C6
Seals: standard NBR 85°Shore, on request VITON
Antiextrusion rings: only in the 1” size
Working Temperatures: NBR -20°C +100°C
VITON -15°C +140°C
For temperature exceeding this values, the quick-release couplings will be
supplied with all components in steel.
