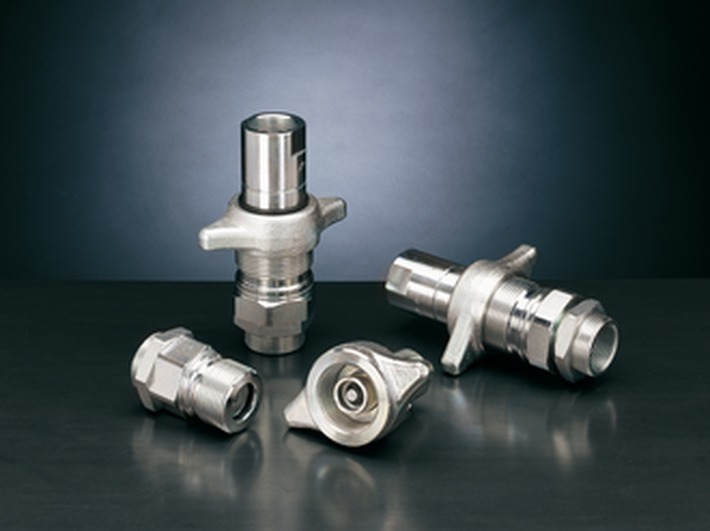

The T series screw-on couplings are especially used in the fields of the road machines and trucks.
Peculiar features of this kind of couplings are the strength and the easy manual connection helped by the particular design of the
male’s sleeve. Last but not least, the T series is suitable to the panel mounting.
Features:
Interchangeability: european market
Shut-off system: poppet valve
Latching system: screw-on
Connection: screwing-on the male’s sleeve
Disconnection: screwing-off the male’s sleeve
Connectability: allowed under residual pressure
Disconnection under pressure: allowed under residual pressure
Threads: BSP
Sizes: 3/4”, 1”
Materials: Female in carbon steel
Sleeve and male in high grade
carbon steel
Steel hardened valve
Surface treatment: zinc plating and Cr III passivation
Springs in C72 steel
Seals: standard NBR, on request VITON
Working Temperatures: NBR -20°C +100°C
VITON -15°C +140°C
For temperature exceeding this values, the quick-release couplings will be
supplied with all components in steel.
