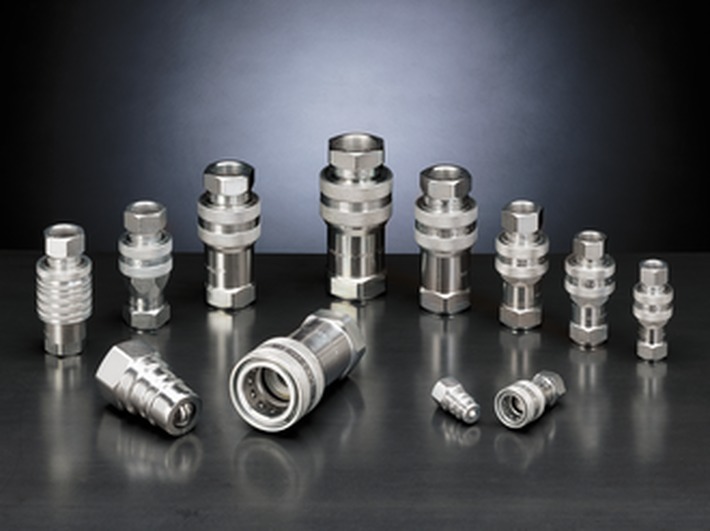

The N series is the only one that is produced also with the ball shut-off system.These couplings are often used on tractors and other agricultural
equipment: for this reason N series is also known like “AGRICULTURAL” series.This terminology is not correct because this type of couplings is
suitable also for many other hydraulic applications in several productive fields.
Interchangeability: with FASTER NV and NS series,
1/2" according to ISO 7241-1A
Shut-off system: poppet valve or precision’s ball
Latching system: balls - bearing
Connection: pulling back the sleeve
Disconnection: pulling back the sleeve
Connectability: without pressure
Disconnection under pressure: not allowed
Threads: BSP – NPTF
Sizes: 1/4" , 3/8”, 1/2”, 3/4”, 1”
Materials: Female in carbon steel
Male in high grade carbon steel,
induction hardened
Steel hardened valve
Surface treatment: zinc plating and Cr III passivation
Springs in C72 steel
High resistance balls 100 C6
Seals: standard NBR, on request VITON
Antiextrusion rings: PTFE
Working Temperatures: NBR -20°C +100°C
VITON -15°C +140°C
For temperature exceeding this values, the quick-release couplings will be
supplied with all components in steel.
