| Typ | SMV 315 | SMV 400 | SMV 500 | SMV 640 | SMV 800 | |
|---|---|---|---|---|---|---|
| CHŁONNOŚĆ [ cm3/obr ] | 333,0 | 419,0 | 518,0 | 666,0 | 801,0 | |
| Prędkość [ obr/min ] | robocza | 446 | 354 | 386 | 223 | 185 |
| max. | 649 | 526 | 425 | 331 | 275 | |
| Moment obrotowy [Nm] | roboczy | 925,0 | 1220,0 | 1450,0 | 1640,0 | 1810,0 |
| max. | 1100,0 | 1439,0 | 1780,0 | 2000,0 | 2110,0 | |
| Moc wyjściowa [kW] | robocza | 43,0 | 45,2 | 58,6 | 38,3 | 35,1 |
| max. | 52,0 | 52,0 | 52,0 | 46,0 | 40,0 | |
| Ciśnienie [bar] | robocze | 20,0 | 20,0 | 20,0 | 18,0 | 16,0 |
| max. | 24,0 | 24,0 | 24,0 | 21,0 | 18,0 | |
| Przepływ [l/min] | roboczy | 149 | 148 | 200 | 149 | 148 |
| max. | 216 | 220 | 220 | 220 | 220 | |

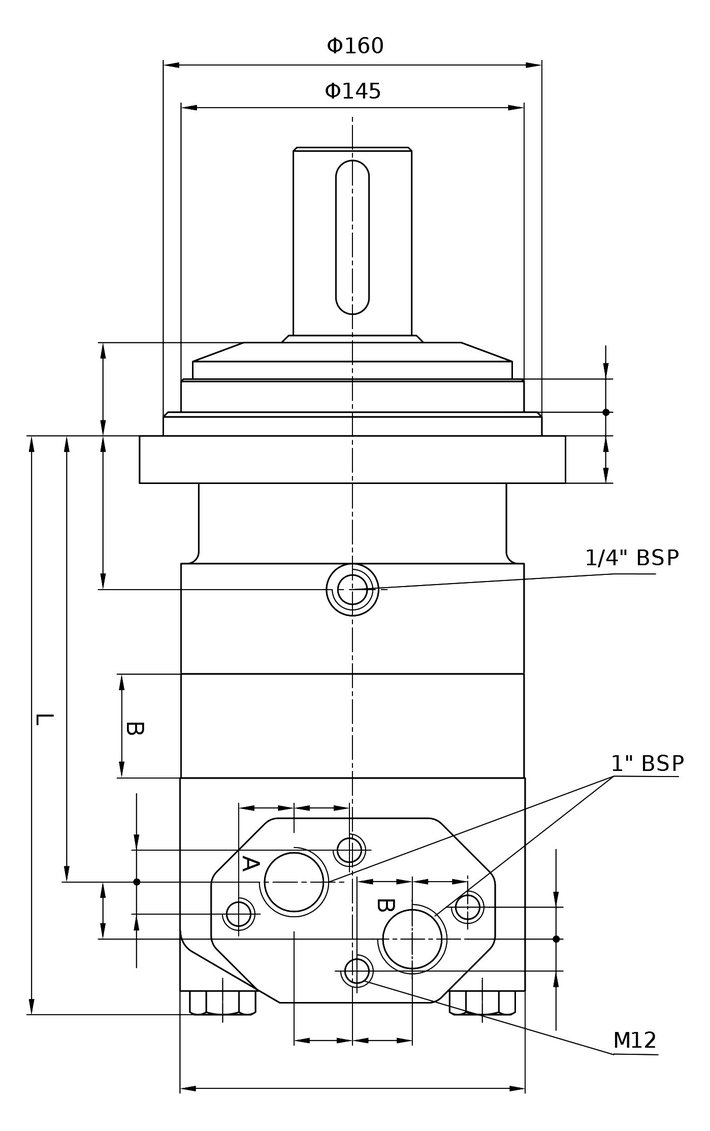

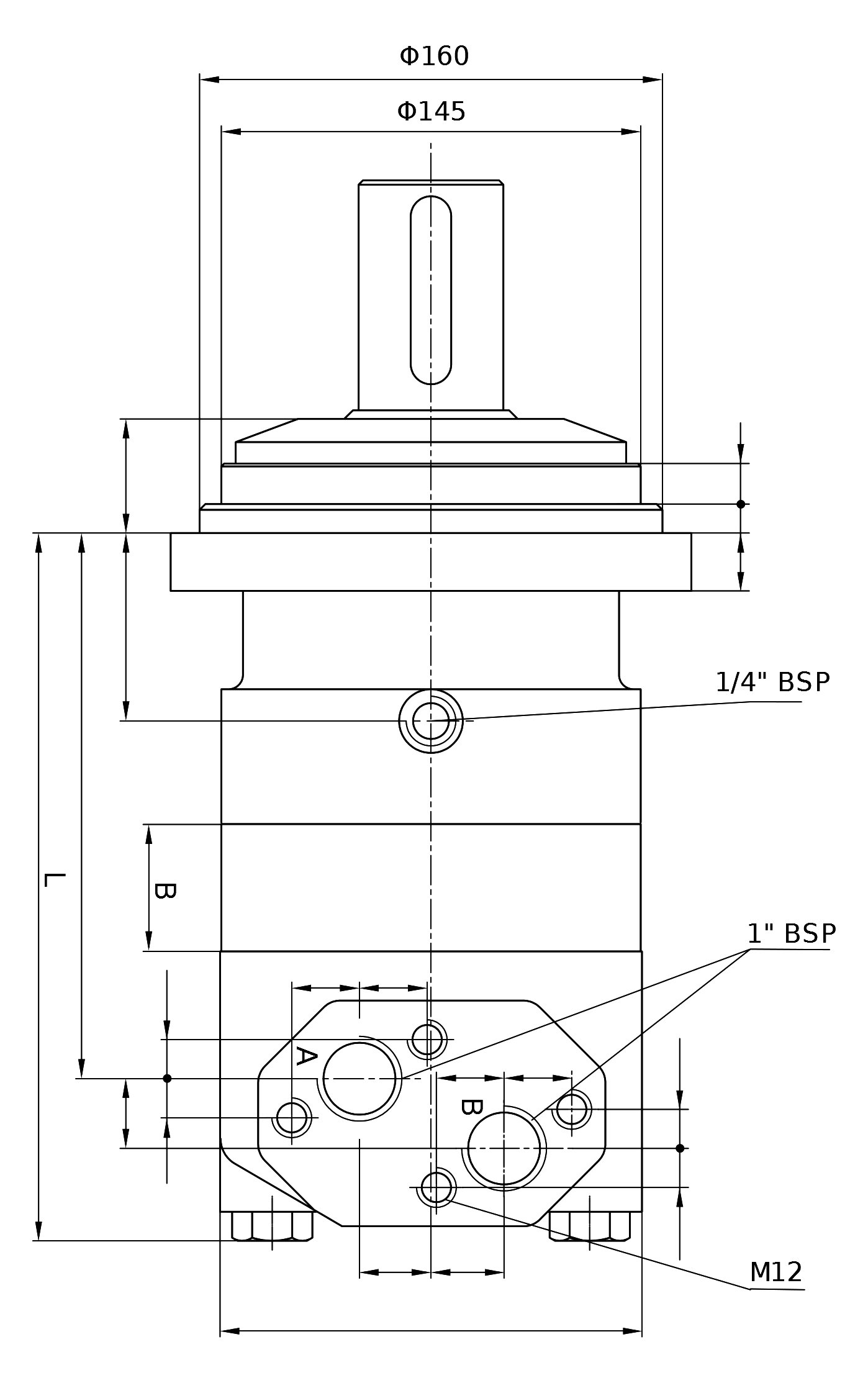

| B [mm] | 27,0 | 34,0 | 42,0 | 54,0 | 65,0 | |
| L [mm] | 217,0 | 224,0 | 232,0 | 244,0 | 255,0 | |
