| Typ | SMT 160 | SMT 200 | SMT 250 | SMT 315 | SMT 400 | SMT 500 | SMT 630 | SMT 800 | |
|---|---|---|---|---|---|---|---|---|---|
| CHŁONNOŚĆ [ cm3/obr ] | 161,0 | 201,4 | 251,8 | 326,3 | 410,9 | 523,6 | 629,1 | 800,1 | |
| Prędkość [ obr/min ] | robocza | 614 | 615 | 495 | 380 | 302 | 327 | 196 | 154 |
| max. | 770 | 743 | 592 | 458 | 364 | 284 | 233 | 185 | |
| Moment obrotowy [Nm] | roboczy | 471,0 | 589,0 | 727,0 | 962,0 | 1095,0 | 1245,0 | 1318,0 | 1464,0 |
| max. | 573,0 | 718,0 | 888,0 | 1154,0 | 1269,0 | 1409,0 | 1498,0 | 1520,0 | |
| Moc wyjściowa [kW] | robocza | 27,7 | 34,9 | 34,5 | 34,9 | 31,2 | 28,8 | 25,3 | 22,2 |
| max. | 32,0 | 40,0 | 40,0 | 40,0 | 35,0 | 35,0 | 27,5 | 26,8 | |
| Ciśnienie [bar] | robocze | 200,00 | 200,00 | 200,00 | 200,0 | 180,0 | 160,0 | 140,0 | 125,0 |
| max. | 240,0 | 240,0 | 240,0 | 240,0 | 210,0 | 180,0 | 160,0 | 130,0 | |
| Przepływ [l/min] | roboczy | 99 | 124 | 125 | 124 | 124 | 124 | 123 | 123 |
| max. | 124 | 150 | 149 | 149 | 150 | 149 | 147 | 148 | |

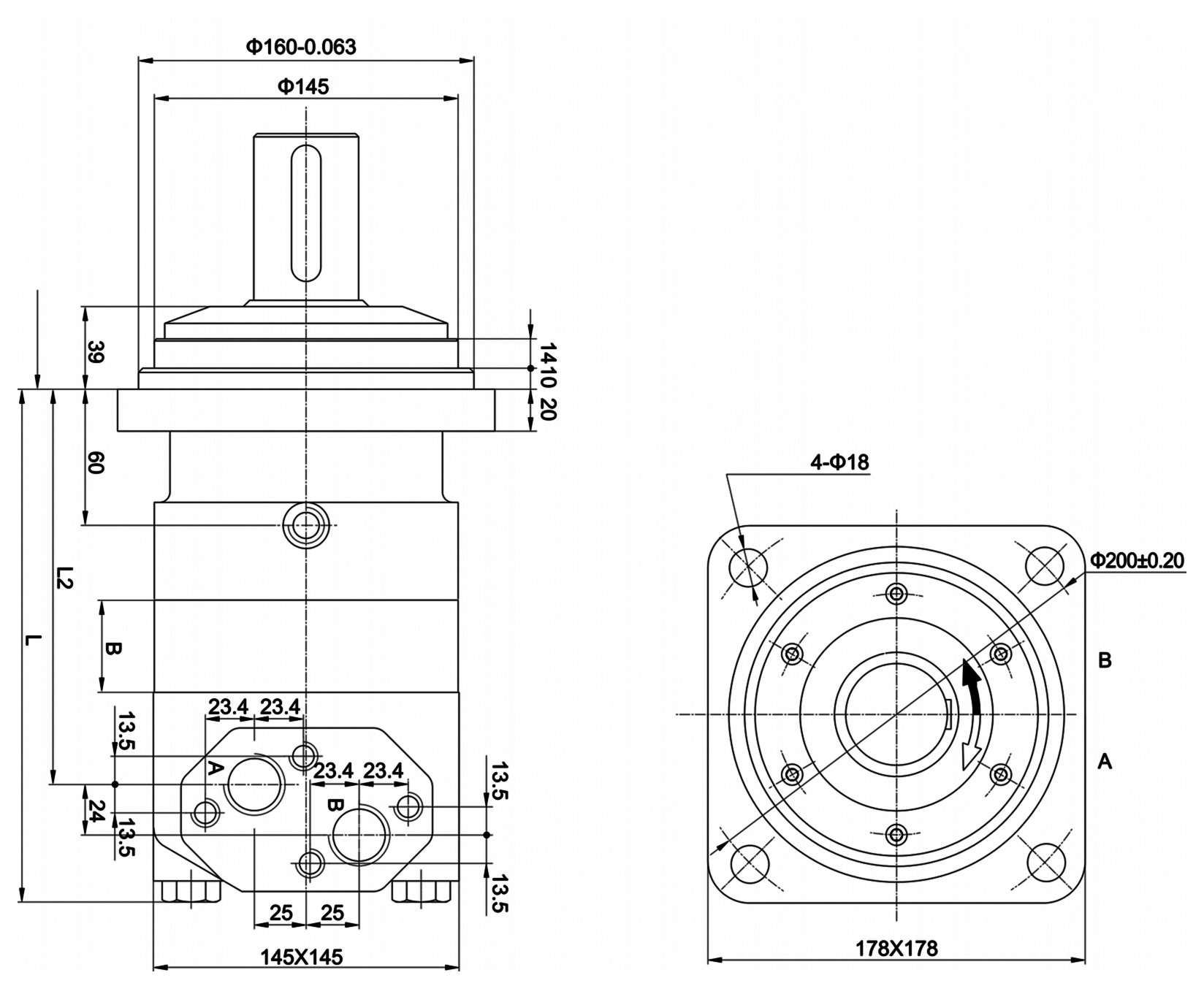

| B [mm] | 17,0 | 19,0 | 21,0 | 27,0 | 34,0 | 42,0 | 54,0 | 65,0 | |
| L [mm] | 193,00 | 213,00 | 215,00 | 221,0 | 228,0 | 236,0 | 248,0 | 259,0 | |
