| Typ | SMR50 | SMR80 | SMR100 | SMR125 | SMR160 | SMR200 | SMR250 | SMR315 | SMR400 | |
|---|---|---|---|---|---|---|---|---|---|---|
| CHŁONNOŚĆ [ cm3/obr ] | 51,7 | 80,5 | 100,5 | 126,3 | 160,8 | 200,9 | 252,6 | 321,5 | 401,9 | |
| Prędkość [ obr/min ] | robocza | 543 | 525 | 420 | 333 | 263 | 210 | 168 | 133 | 112 |
| max. | 775 | 750 | 600 | 475 | 375 | 300 | 240 | 190 | 160 | |
| Moment obrotowy [Nm] | roboczy | 93,0 | 152,0 | 194,0 | 237,0 | 310,0 | 369,0 | 380,0 | 380,0 | 380,0 |
| max. | 118,0 | 192,9 | 236,0 | 296,0 | 378,0 | 450,0 | 470,0 | 470,0 | 470,0 | |
| Moc wyjściowa [kW] | robocza | 7,0 | 10,0 | 10,0 | 10,0 | 10,0 | 8,0 | 6,0 | 5,0 | 4,0 |
| max. | 10,0 | 14,3 | 14,3 | 14,3 | 14,3 | 11,4 | 8,6 | 7,1 | 5,7 | |
| Ciśnienie [bar] | robocze | 140,0 | 140,0 | 140,0 | 140,0 | 140,0 | 140,0 | 110,0 | 90,0/td> | 70,0 |
| max. | 175,0 | 175,0 | 175,0 | 175,0 | 175,0 | 175,0 | 140,0 | 110,0 | 90,0 | |
| Przepływ [l/min] | roboczy | 28 | 42 | 42 | 42 | 42 | 42 | 42 | 43 | 45 |
| max. | 40 | 60 | 60 | 60 | 60 | 60 | 61 | 61 | 64 | |

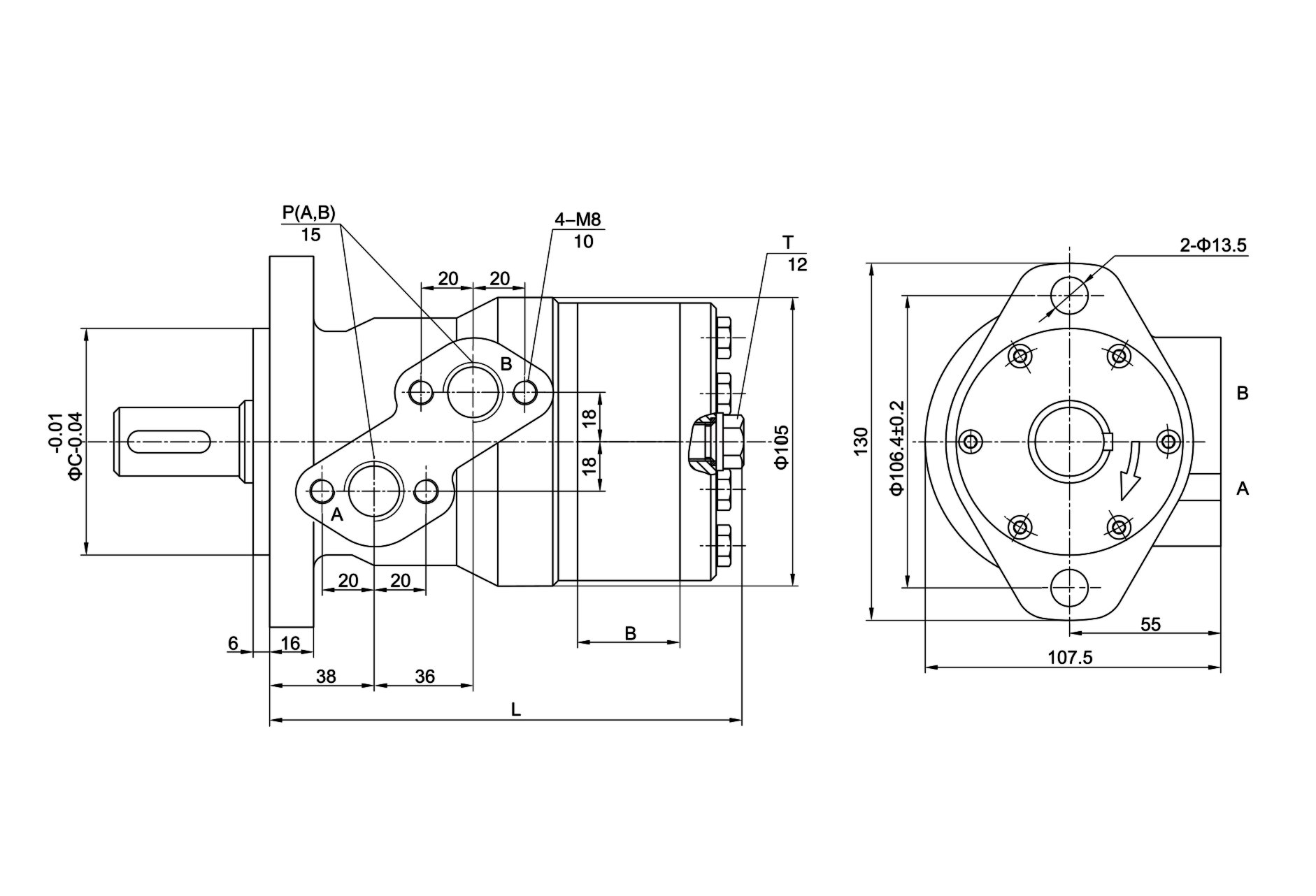

| B [mm] | 9,0 | 14,0 | 17,5 | 22,0 | 28,0 | 35,0 | 44,0 | 56,0 | 70,0 | |
| L [mm] | 139,00 | 144,00 | 148,00 | 152,0 | 158,0 | 165,0 | 174,0 | 186,0 | 200,0 | |
