| Typ | BMM 8 | BMM 12 | BMM 20 | BMM 32 | BMM 40 | BMM 50 | |
|---|---|---|---|---|---|---|---|
| CHŁONNOŚĆ [ cm3/obr ] | 8,2 | 12,9 | 19,9 | 31,6 | 39,8 | 50,3 | |
| Prędkość [ obr/min ] | robocza | 1950 | 1550 | 1000 | 640 | 500 | 400 |
| max. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
| Moment obrotowy [Nm] | roboczy | 11,0 | 16,0 | 25,0 | 40,0 | 25,0 | 46,0 |
| max. | 15,0 | 23,0 | 35,0 | 57,0 | 70,0 | 88,0 | |
| Moc wyjściowa [kW] | robocza | 1,8 | 2,4 | 2,4 | 2,4 | 2,2 | 1,8 |
| max. | 2,6 | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 | |
| Ciśnienie [bar] | robocze | 100,0 | 100,0 | 100,0 | 100,0 | 90,0 | 70,0 |
| max. | 140,0 | 140,0 | 140,0 | 140,0 | 140,0 | 140,0 | |
| Przepływ [l/min] | roboczy | 16 | 20 | 20 | 20 | 20 | 20 |
| max. | 20 | 25 | 25 | 25 | 25 | 25 | |

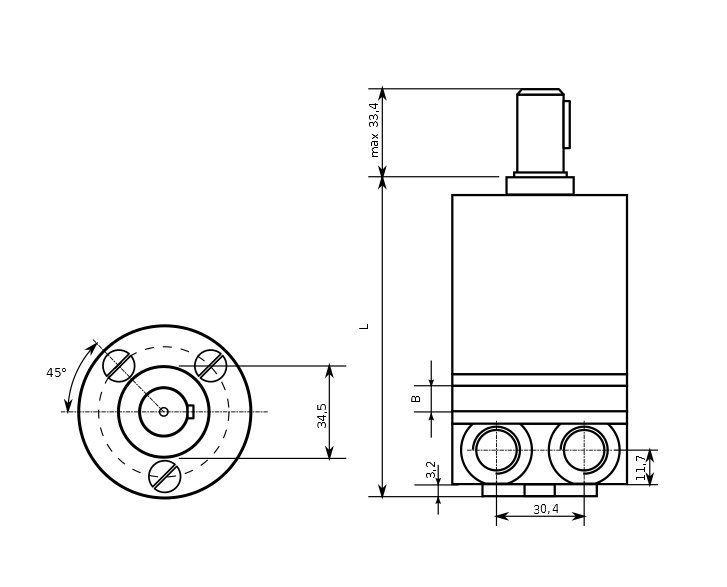

| B [mm] | 3,5 | 5,5 | 8,5 | 13,5 | 17,0 | 21,5 | |
| L [mm] | 104,00 | 106,00 | 109,00 | 114,0 | 118,0 | 122,0 | |
