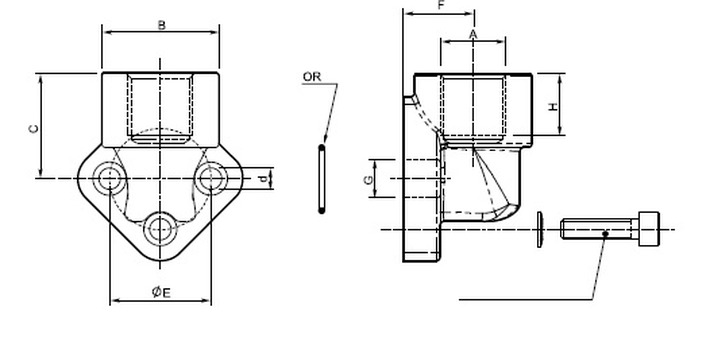

| TYP | A | B | C | d | E | F | G | H |
| FG 3/8" - 26 | 3/8" BSP | 30 | 27.5 | 5.5 | 26 | 17 | 11 | 12 |
| FG 3/8" - 30 | 30/8" BSP | 30 | 27.5 | 6.5 | 30 | 17 | 12 | 12 |
| FG 1/2 -30 | 1/2" BSP | 30 | 27.5 | 6.5 | 30 | 17 | 12 | 12 |
| FG 3/4" | 3/4" BSP | 38 | 36 | 6.5 | 40 | 21 | 19 | 16 |
| FG 1" -51 | 1" BSP | 45 | 47 | 10.5 | 51 | 26 | 25 | 18 |
| FG 1" 1/2-72.5 | 1" 1/2 BSP | 63 | 56 | 13 | 72,5 | 34,5 | 40 | 24 |
