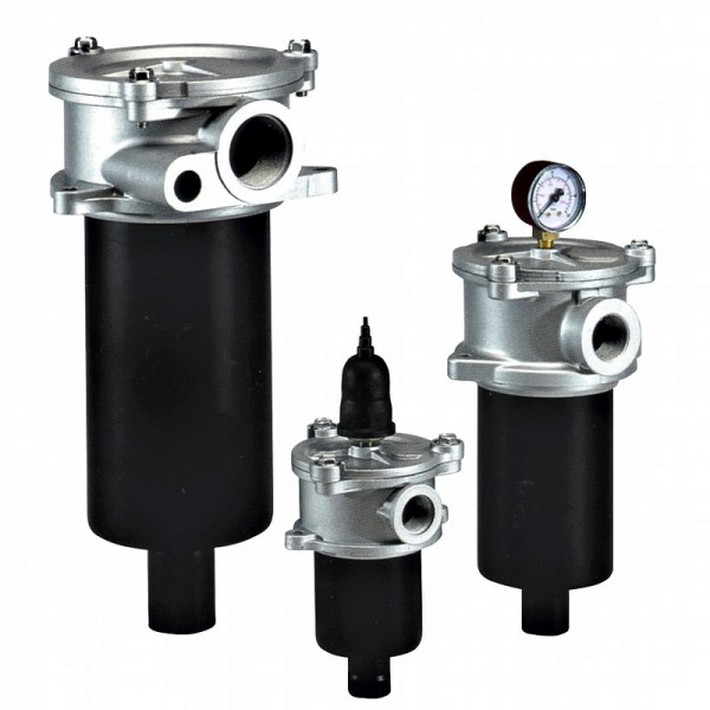

RFM
300 kPa (3 bar)
Ports: 3/8”÷ 2” 1/2
Flow rates: 5 ÷ 700 l/min
TECHNICAL DATA
Max. working pressure: 300 kPa (3 bar)
Max. test pressure: 500 kPa (5 bar)
Bursting pressure: 1 MPa (10 bar)
Fatigue test: 0 ÷ 300 kPa (3 bar) / 300.000 cycles
Bypassvalve:∆p170kPa(1,7bar)±0,2
Filter element collapse pressure:
∆p300kPa(3bar)
(type CD-CV) - ISO 2941
∆p1MPa(10bar)
(type DR-VR-MV-MS-MN- FT-FC-FD-FV) - ISO 2941
Working temperature: -25 ÷ +110°C
MATERIALS
Cover and head: aluminium
Bowl: polyamide (steel for size 004 and 055 to 160)
Seals: standard NBR
on request FKM
COMPATIBILITY (ISO 2943)
Fullwithfluids:HH-HL-HM-HV-HTG
(according to ISO 6743/4).
Forfluidsdifferentthantheabovementioned,
please contact our Sales Department.
All tests performed according
to the following standards:
ISO 2941: Element collapse resistance test
ISO 2942: Production integrity test
ISO 2943: Fluids compatibility
ISO 3723: End load test method
ISO 3724: Flow fatigue resistance method
ISO3968:Pressuredropversusflowrate
ISO 16889: Multipass test.
For further information contact our Technical Dept.
