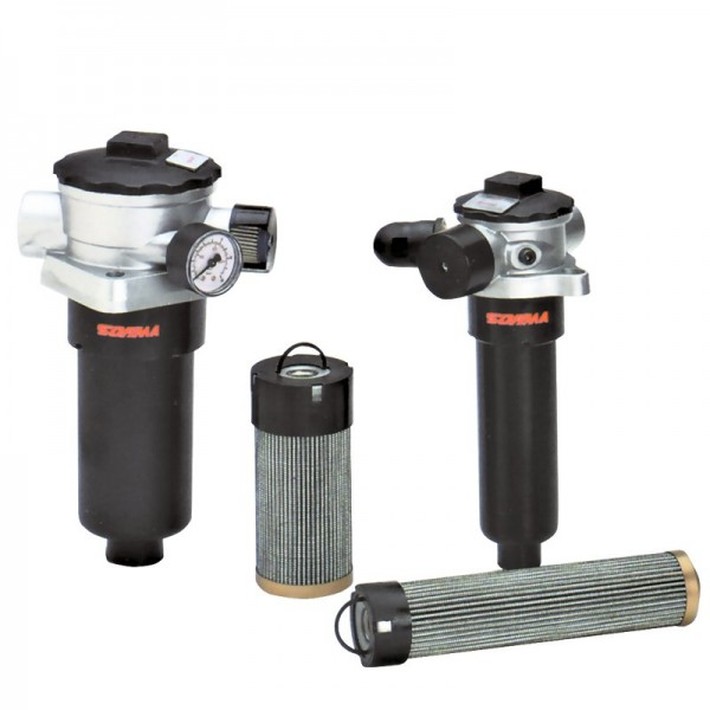

RFA
1 MPa (10 bar)
Port sizes: 1/2” ÷ 1”
Flow rates: 30 ÷ 140 l/min
TECHNICAL DATA
Max. working pressure: 1 MPa (10 bar)
Fatigue test: 0 ÷ 1 MPa (10 bar) / 300.000 cycles min.
Bypass valve: ∆p 170 kPa (1,7 bar) ± 0,1 (CD-CV-MS-RT)
∆p 250 kPa (2,5 bar) ± 0,3 (FV-FD-FC)
Filter element collapse pressure:
∆p 300 kPa (3 bar) CD - CV
∆p 1 MPa (10 bar) FD - FV - MS - RT
Working temperature: -25 ÷ +110°C

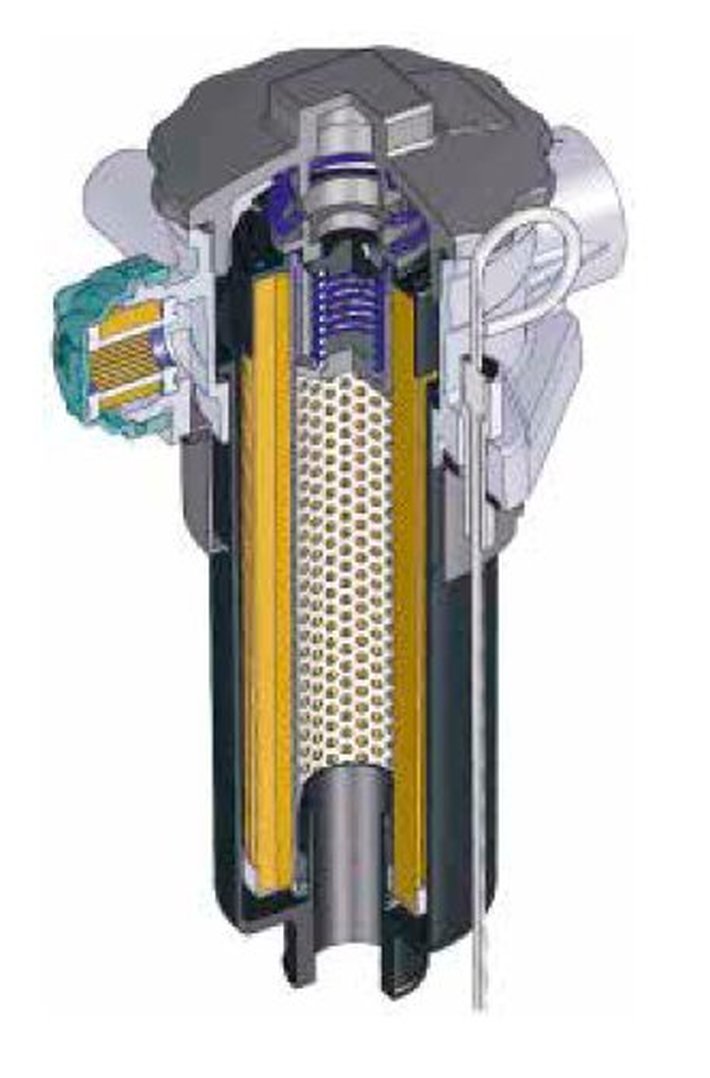

MATERIALS
Cover: polyamide
Head: aluminium
Bowl: polyamide
Seals: standard NBR
COMPATIBILITY (ISO 2943)
Full with fl uids: HH-HL-HM-HV-HTG
(according to ISO 6743/4).
For fl uids different than the above mentioned,
please contact our Sales Department.
All tests performed according
to the following standards:
ISO 2941: Element collapse resistance test
ISO 2942: Production integrity test
ISO 2943: Fluids compatibility
ISO 3723: End load test method
ISO 3724: Flow fatigue resistance method
ISO 3968: Pressure drop versus fl ow rate
ISO 16889: Multipass test.
For further information contact our Technical Dept.
