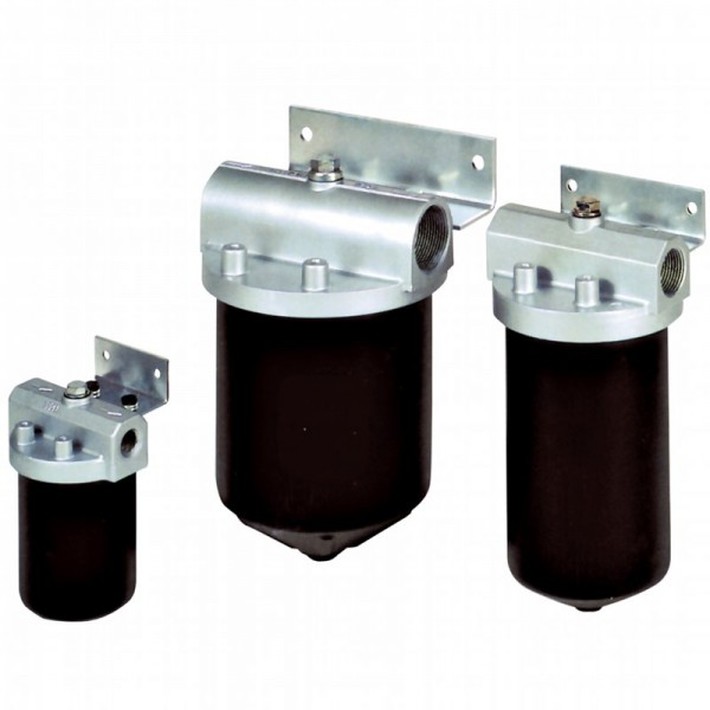

LFM
0,7 MPa (7 bar)
Port sizes: 3/8” ÷ 1” 1/2
Flow rates: 4 ÷ 600 l/min
TECHNICAL DATA
Max. working pressure: 0,7 MPa (7bar)
Max. test pressure: 1,4 MPa (14 bar)
Bursting pressure: 2,1 MPa (21 bar)
Filter element collapse pressure:
∆p 400 kPa (4 bar) - ISO 4572
Working temperature: -25 ÷ +110°C
MATERIALS
Head: aluminium
Bowl: cold formed steel
Seals: standard NBR
on request FKM
COMPATIBILITY (ISO 2943)
Full with fl uids: HH-HL-HM-HV-HTG
(according to ISO 6743/4).
For fl uids different than the above mentioned,
please contact our Sales Department.
All tests performed according
to the following standards:
ISO 2941: Element collapse resistance test
ISO 2942: Production integrity test
ISO 2943: Fluids compatibility
ISO 3723: End load test method
ISO 3724: Flow fatigue resistance method
ISO 3968: Pressure drop versus fl ow rate
ISO 16889: Multipass test.
For further information contact our Technical Dept.
