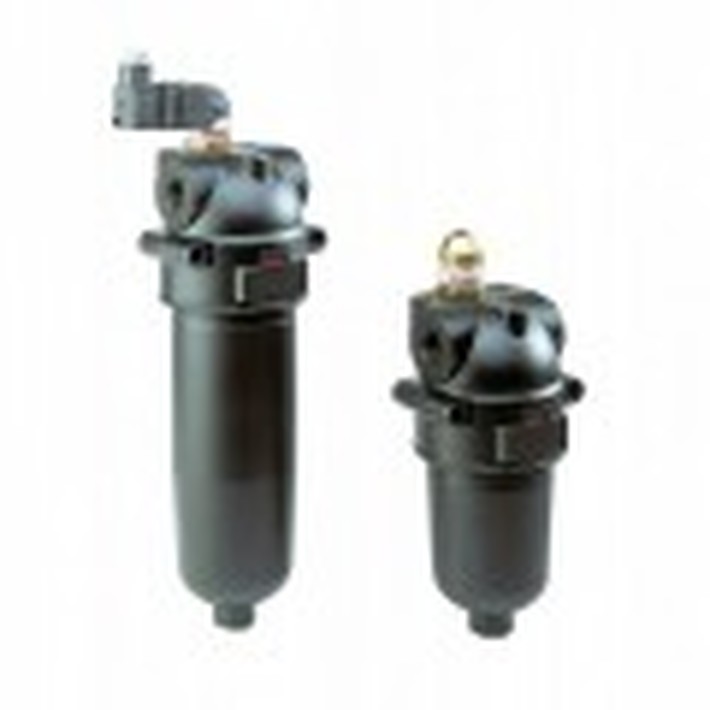

SPM 22
MPa (220 bar)
Port sizes: 1/2”÷ 1”
Flow rates: 10 ÷ 130 l/min
TECHNICAL DATA
Max. working pressure: 22 MPa (220 bar)
Max. test pressure: 33 MPa (330 bar)
Bursting pressure: 66 MPa (660 bar)
Fatigue test: 0 ÷ 15 MPa (150 bar) / 1.000.000 cycles
Bypass valve: ∆p 350 kPa (3,5 bar) ± 10%
∆p 600 kPa (6 bar) ± 10%
Filter element collapse pressure: standard: ∆p 2,1 MPa (21 bar)
Working temperature: -25 ÷ +110°C
MATERIALS
Head and bowl: anodized aluminium
Seals: standard NBR
on request FKM
COMPATIBILITY (ISO 2943)
Full with fl uids: HH-HL-HM-HV-HTG
(according to ISO 6743/4).
For fl uids different than the above mentioned,
please contact our Sales Department.
All tests performed according
to the following standards:
ISO 2941: Element collapse resistance test
ISO 2942: Production integrity test
ISO 2943: Fluids compatibility
ISO 3723: End load test method
ISO 3724: Flow fatigue resistance method
ISO 3968: Pressure drop versus fl ow rate
ISO 16889: Multipass test.
For further information contact our Technical Dept.
