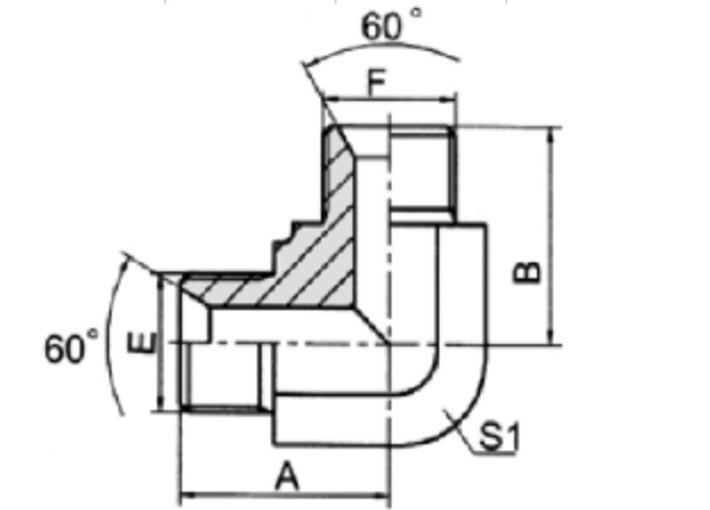

| KOD | Gwint | Wymiary | |||
|---|---|---|---|---|---|
| E | F | A | B | S1 | |
| 1B9-02 | G1/8"x28 | G1/8"x28 | 19,8 | 19,8 | 11 |
| 1B9-02-04 | G1/8"x28 | G1/4"x19 | 23 | 25 | 14 |
| 1B9-04 | G1/4"x19 | G1/4"x19 | 24,5 | 24,5 | 14 |
| 1B9-04-06 | G1/4"x19 | G3/8"x19 | 26,5 | 27,5 | 16 |
| 1B9-06 | G3/8"x19 | G3/8"x19 | 27,5 | 27,5 | 16 |
| 1B9-06-08 | G3/8"x19 | G1/2"x14 | 31 | 34,5 | 22 |
| 1B9-08 | G1.1/2"x14 | G1/2"x14 | 34,5 | 34,5 | 22 |
| 1B9-08-12 | G1/2"x14 | G3/4"x14 | 37,5 | 40 | 27 |
| 1B9-10 | G5/8"x14 | G5/8"x14 | 35 | 35 | 22 |
| 1B9-10-12 | G5/8"x14 | G3/4"x14 | 37,5 | 39 | 30 |
| 1B9-12 | G3/4"x14 | G3/4"x14 | 40 | 40 | 27 |
| 1B9-12-16 | G3/4"x14 | G1"x11 | 43,5 | 46 | 33 |
| 1B9-16 | G1"x11 | G1"x11 | 46 | 54 | 33 |
| 1B9-16-20 | G1"x11 | G1.1/4"x11 | 50,5 | 50,5 | 41 |
| 1B9-20 | G1.1/4"x11 | G1.1/4"x11 | 50,5 | 50,5 | 41 |
| 1B9-20-24 | G1.1/4"x11 | G1.1/2"x11 | 54,5 | 57,5 | 48 |
| 1B9-24 | G1.1/2"x11 | G1.1/2"x11 | 57,5 | 57,5 | 48 |
| 1B9-32 | G2"x11 | G2"x11 | 68 | 68 | 63 |
